FLSR-225ID

$141.99
Stock Quantity: 351
SKU
FLSR-225ID

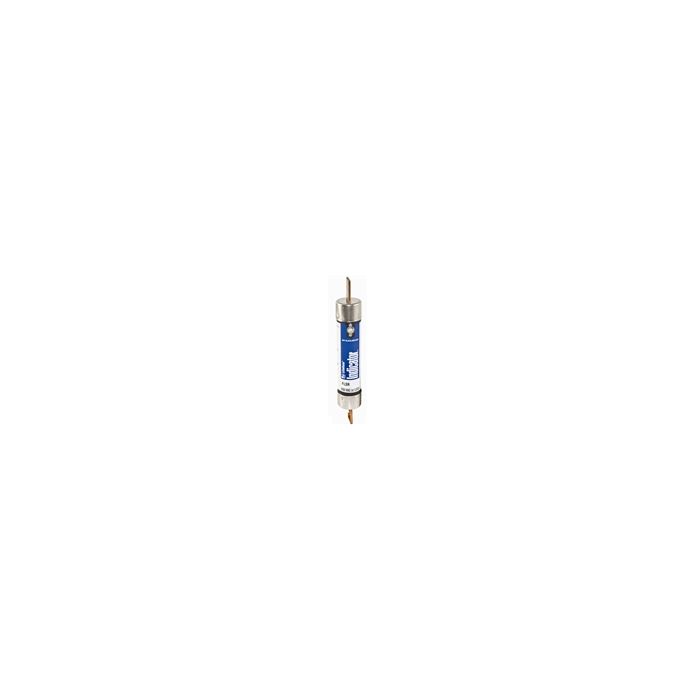

FLSR 225 Amp, 600V, Class RK5, Littelfuse FLSR-225ID, FLSR 225A | aka: Time Delay FLSR-225ID, Littel fuse FLSR-225ID, UPC: 079458025569
Allfuses.com is not an authorized distributor of Littelfuse products

FLSR 225 Amp, 600V, Class RK5, Littelfuse FLSR-225ID, FLSR 225A | aka: Time Delay FLSR-225ID, Littel fuse FLSR-225ID, UPC: 079458025569


Description:

  • 225 Amps, 600 Volts AC
  • UL Class RK5 w/ Indicator
  • Time Delay
  • Dual Element
  • Physical Size: 2 19/32" x 11 5/8"
  • Current Limiting
  • For All General Purpose Circuits
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 1000-250kcmil)
  • 1 Pole: 64001R 3 Pole: 64003R
  • Box Side Clip (Al/Cu 2 Hole - 350kcmil-#6)
  • 3 Pole: 64033R

  • Fuse Reducers
  • 600 Amp to 400 Amp: R642
Data Sheet
