FRS-R-225

$161.54
Out of stock
SKU
FRS-R-225

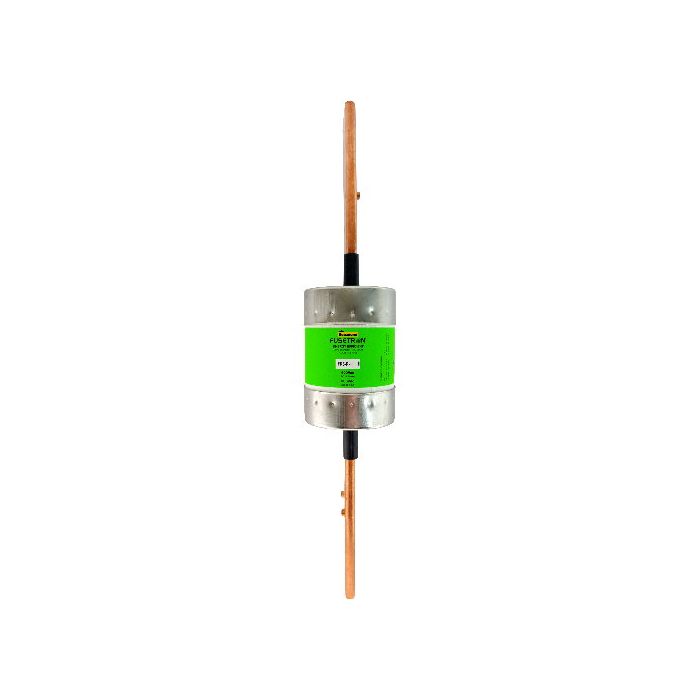

FRS-R 225 Amp, 600V, Class RK5, Bussmann FRS-R-225, FRS-R 225A | aka: Fusetron FRS-R-225, Cooper Bussmann FRS-R-225, UPC: 051712508490
Allfuses.com is not an authorized distributor of Bussmann products

FRS-R 225 Amp, 600V, Class RK5, Bussmann FRS-R-225, FRS-R 225A | aka: Fusetron FRS-R-225, Cooper Bussmann FRS-R-225, UPC: 051712508490


Description:

  • 225 Amps, 600 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • Physical Size: 2.34" x 11.63"
  • AC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC RMS
  • Interrupting Rating: 20 kAIC @ 300 Vdc
  • Current-limiting
  • UL Listed, Class RK5, Guide JDDZ, File E4273
  • CSA Certified, Class 1422-01, File 53787

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 1000-250kcmil)
  • 1 Pole: 64001R 3 Pole: 64003R
  • Box Side Clip (Al/Cu 2 Hole - 350kcmil-#6)
  • 3 Pole: 64033R

  • Fuse Reducers
  • 600 Amp to 400 Amp: R642
Data Sheet
