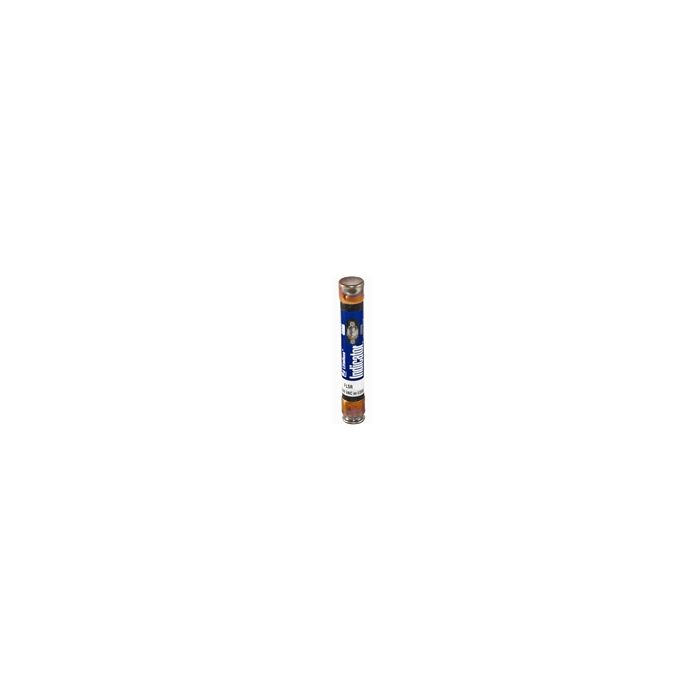

FLSR-020ID

Description:

• 20 Amps, 600 Volts AC
• UL Class RK5 w/ Indicator
• Time Delay
• Dual Element
• Physical Size: 13/16" x 5"
• Current Limiting
• For All General Purpose Circuits
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 200,000 AIC @ 600VAC
• DC Interrupting Rating: 20,000 AIC
• UL Listed (File: E81895) CSA Certified (File: LR29862)
•

• Related Products:


• Fuse Blocks
• Box Lugs (Al/Cu #2-14)
1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
• Screw Connector (Cu #10-14)
3 Pole: 60318R
• Pressure Plate (Cu #10-14)
3 Pole: 60328R


• Fuse Reducers
• 60 Amp to 30 Amp: R636
• 100 Amp to 30 Amp: R162
