FRS-R-20

$11.49
Stock Quantity: 651
SKU
FRS-R-20

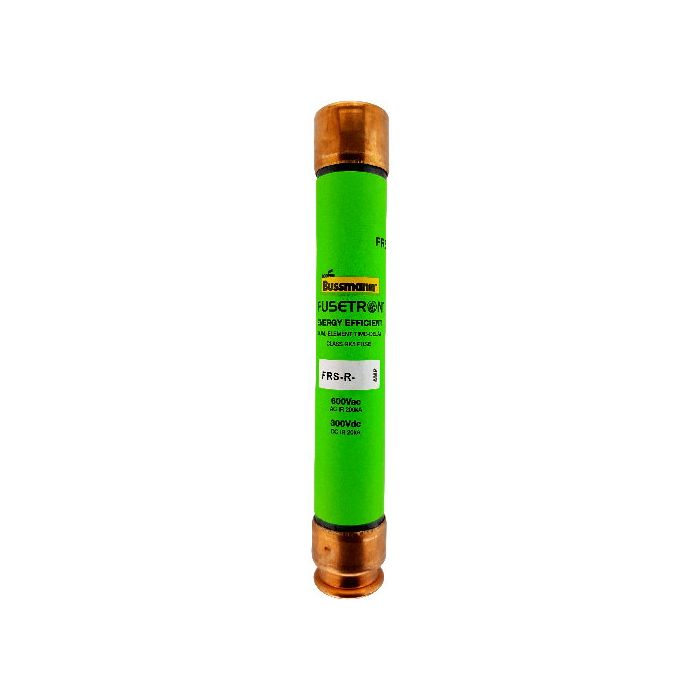

FRS-R 20 Amp, 600V, Class RK5, Bussmann FRS-R-20, FRS-R 20A | aka: Fusetron FRS-R-20, Cooper Bussmann FRS-R-20, UPC: 051712508322
Allfuses.com is not an authorized distributor of Bussmann products

FRS-R 20 Amp, 600V, Class RK5, Bussmann FRS-R-20, FRS-R 20A | aka: Fusetron FRS-R-20, Cooper Bussmann FRS-R-20, UPC: 051712508322


Description:

  • 20 Amps, 600 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • Physical Size: 0.81" x 5"
  • AC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC RMS
  • Interrupting Rating: 20 kAIC @ 300 Vdc
  • Current-limiting
  • UL Listed, Class RK5, Guide JDDZ, File E4273
  • CSA Certified, Class 1422-01, File 53787

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
  • Screw Connector (Cu #10-14)
  • 3 Pole: 60318R
  • Pressure Plate (Cu #10-14)
  • 3 Pole: 60328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R636
  • 100 Amp to 30 Amp: R162
Data Sheet
