KTS-R-150

$214.29
Out of stock
SKU
KTS-R-150

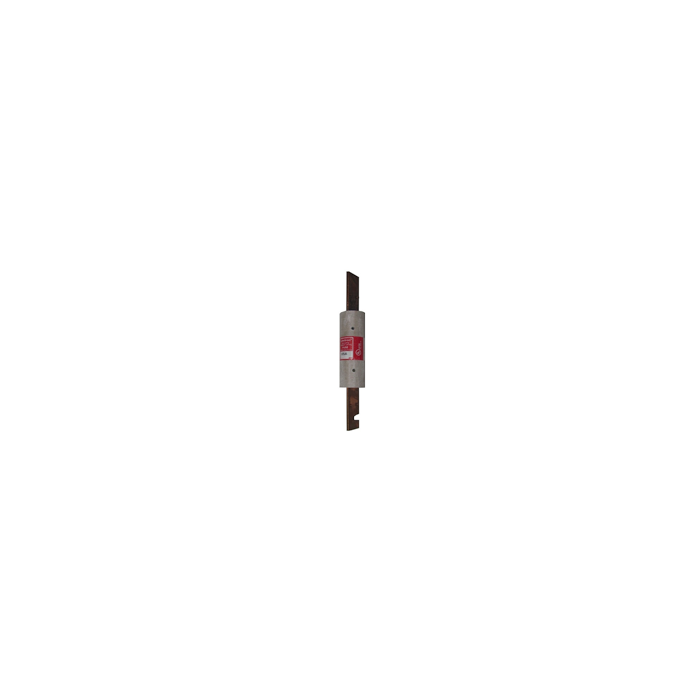

KTS-R 150 Amp, 600V, Class RK-1, Bussmann KTS-R-150, KTS-R 150A | aka: Limitron KTS-R-150, Cooper Bussmann KTS-R-150, UPC: 051712417167
Allfuses.com is not an authorized distributor of Bussmann products

KTS-R 150 Amp, 600V, Class RK-1, Bussmann KTS-R-150, KTS-R 150A | aka: Limitron KTS-R-150, Cooper Bussmann KTS-R-150, UPC: 051712417167


Description:

  • 150 Amps, 600 Volts AC
  • Fast Acting Fuse
  • Single Element
  • Current Limiting
  • Physical Size: 1.5" x 9.63"
  • LIMITRON® Fast Acting Fuse
  • Suited for Circuits and Loads with No Heavy Surge Currents
  • Tube Material: Glass Melamine
  • End Caps: 70/30 Brass
  • AC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC RMS @ 600VAC
  • UL Listed, Std. 248-12, Class RK1, Guide JDDZ, File E54273
  • CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 350kcmil-#6)
  • 1 Pole: 62001R 3 Pole: 62003R
  • Box Side Clip (Cu 350kcmil-#6)
  • 3 Pole: 62053R

  • Fuse Reducers
  • 400 Amp to 200 Amp: R422
  • 600 Amp to 200 Amp: R622
Data Sheet
