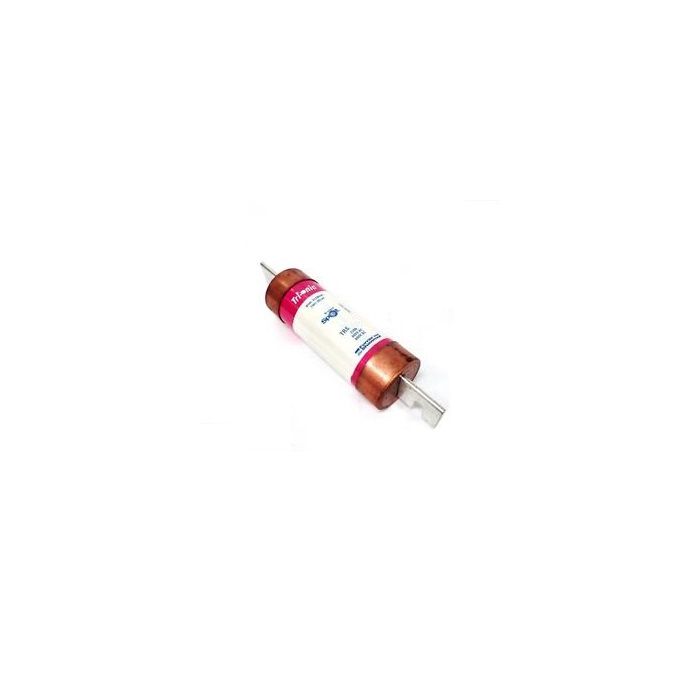

TRS250RID

$172.24
Stock Quantity: 1
SKU
TRS250RID
TRS 250 Amp, 600V, Class RK5, Ferraz TRS250RID, TRS 250A | aka: Trionic TRS250RID, Low Voltage TRS250RID, UPC: 782001415242
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

TRS 250 Amp, 600V, Class RK5, Ferraz TRS250RID, TRS 250A | aka: Trionic TRS250RID, Low Voltage TRS250RID, UPC: 782001415242


Description:

  • 250 Amps, 600 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • Indicating
  • Physical Size: 2 9/16" x 11 5/8"
  • Current Limiting
  • AC and DC Rated
  • Rejection Style Design Prevents Replacement Errors
  • AC Voltage Rating: 600
  • DC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 100,000 AIC

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 1000-250kcmil)
  • 1 Pole: 64001R 3 Pole: 64003R
  • Box Side Clip (Al/Cu 2 Hole - 350kcmil-#6)
  • 3 Pole: 64033R

  • Fuse Reducers
  • 600 Amp to 400 Amp: R642
Data Sheet
