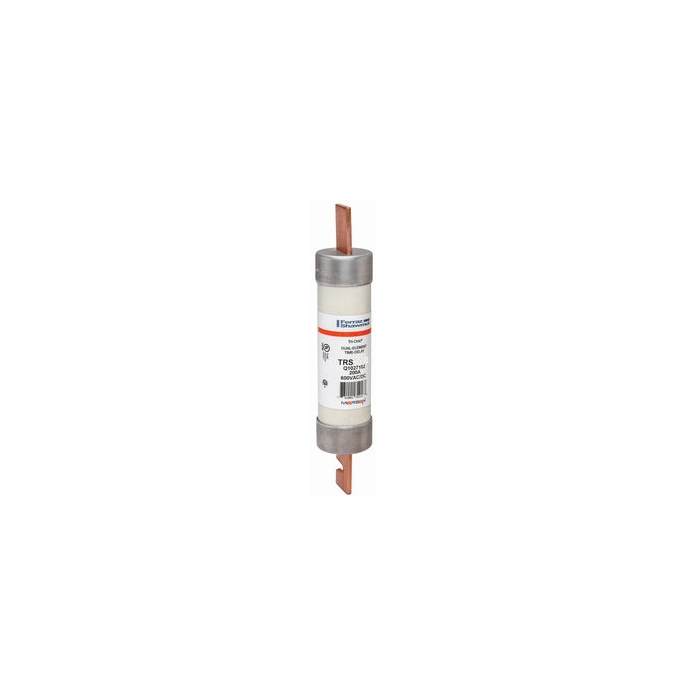

TRS150R

$67.04
Out of stock
SKU
TRS150R
TRS 150 Amp, 600V, Class RK5, Ferraz TRS150R, TRS 150A | aka: Trionic TRS150R, Low Voltage TRS150R, UPC: 782001749163
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

TRS 150 Amp, 600V, Class RK5, Ferraz TRS150R, TRS 150A | aka: Trionic TRS150R, Low Voltage TRS150R, UPC: 782001749163


Description:

  • 150 Amps, 600 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • Physical Size: 1 13/16" x 9 5/8"
  • Current Limiting
  • AC and DC Rated
  • Rejection Style Design Prevents Replacement Errors
  • AC Voltage Rating: 600
  • DC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 100,000 AIC

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 350kcmil-#6)
  • 1 Pole: 62001R 3 Pole: 62003R
  • Box Side Clip (Cu 350kcmil-#6)
  • 3 Pole: 62053R

  • Fuse Reducers
  • 400 Amp to 200 Amp: R422
  • 600 Amp to 200 Amp: R622
Data Sheet
