TRS125RID

$90.84
Stock Quantity: 1
SKU
TRS125RID

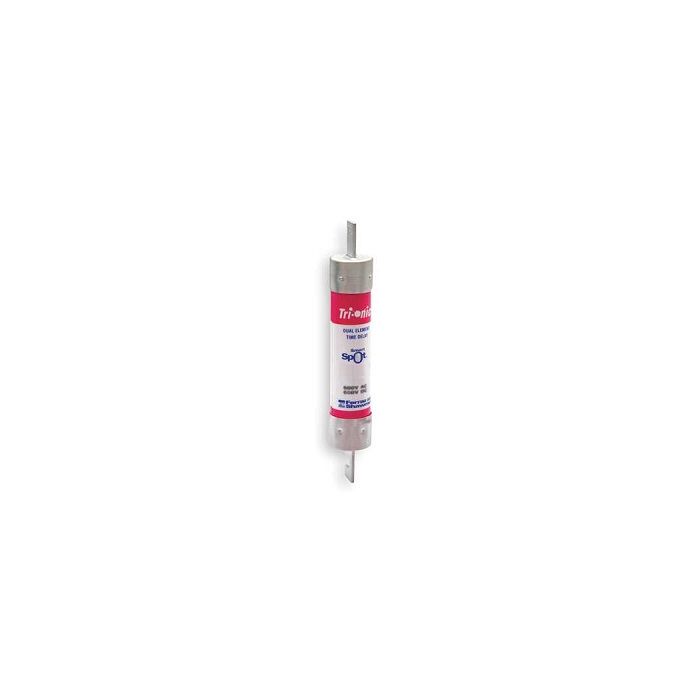

TRS 125 Amp, 600V, Class RK5, Ferraz TRS125RID, TRS 125A | aka: Trionic TRS125RID, Low Voltage TRS125RID, UPC: 782001415198
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

TRS 125 Amp, 600V, Class RK5, Ferraz TRS125RID, TRS 125A | aka: Trionic TRS125RID, Low Voltage TRS125RID, UPC: 782001415198


Description:

  • 125 Amps, 600 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • w/ Indicator
  • Physical Size: 1 13/16" x 9 5/8"
  • Current Limiting
  • AC and DC Rated
  • Rejection Style Design Prevents Replacement Errors
  • AC Voltage Rating: 600
  • DC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 100,000 AIC

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 350kcmil-#6)
  • 1 Pole: 62001R 3 Pole: 62003R
  • Box Side Clip (Cu 350kcmil-#6)
  • 3 Pole: 62053R

  • Fuse Reducers
  • 400 Amp to 200 Amp: R422
  • 600 Amp to 200 Amp: R622
Data Sheet
