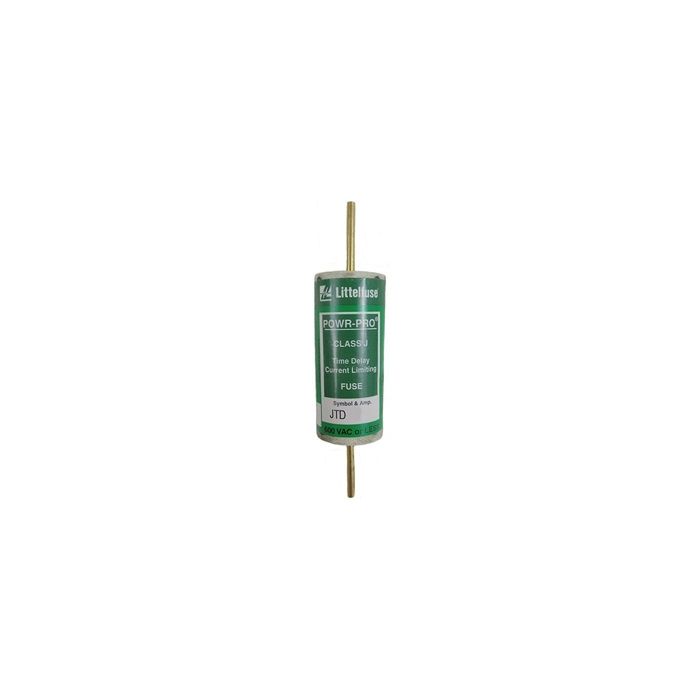

JTD-225

$185.84
Stock Quantity: 17
SKU
JTD-225
JTD 225 Amp, 600V, Class J, Littelfuse JTD-225, JTD 225A | aka: Time Delay JTD-225, Littel fuse JTD-225, UPC:
Allfuses.com is not an authorized distributor of Littelfuse products

JTD 225 Amp, 600V, Class J, Littelfuse JTD-225, JTD 225A | aka: Time Delay JTD-225, Littel fuse JTD-225, UPC:


Description:

  • 225 Amps, 600 Volts AC
  • UL Class J Fuse
  • Time Delay
  • Dual Element
  • Physical Size: 2" x 7 1/8"
  • Current Limiting
  • IEC Type 2 Protection
  • AC Voltage Rating: 600
  • DC Voltage Rating: 500
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
  • 1 Pole: 64001J 3 Pole: 64003J
  • Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
  • 3 Pole: 64033J
  • Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
  • 3 Pole: 64063J

  • Fuse Reducers
  • 600 Amp to 400 Amp: J646
Data Sheet
