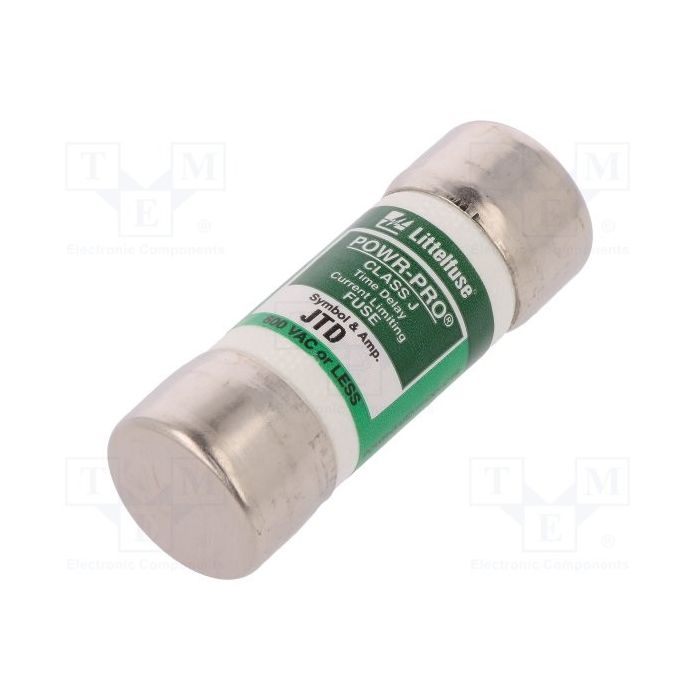

JTD-002ID

$20.34
Stock Quantity: 15
SKU
JTD-002ID
JTD 2 Amp, 600V, Class J, Littelfuse JTD-002ID, JTD 2A | aka: Time Delay JTD-002ID, Littel fuse JTD-002ID, UPC:
Allfuses.com is not an authorized distributor of Littelfuse products

JTD 2 Amp, 600V, Class J, Littelfuse JTD-002ID, JTD 2A | aka: Time Delay JTD-002ID, Littel fuse JTD-002ID, UPC:


Description:

  • 2 Amps, 600 Volts AC
  • UL Class J Fuse w/ Indicator
  • Time Delay
  • Dual Element
  • Physical Size: 13/16" x 2 1/4"
  • Current Limiting
  • IEC Type 2 Protection
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Ultrasafe Fuse Holders
  • 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
  • 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
  • 3 Pole: US3J3; 3 Pole with Indicator:US3J3I

  • Fuse Blocks
  • Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60301J 3 Pole: 60303J
  • Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
  • Non-Spring Reinforced, Screw (Cu #4-14)
  • 3 Pole: 60313J
  • Non-Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60323J
  • Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60328SJ
  • Spring Reinforced, Box Lugs (Cu #4-14)
  • 3 Pole: 60358SJ

  • Fuse Reducers
  • 200 Amp to 30 Amp: J236
  • 100 Amp to 30 Amp: J136
  • 60 Amp to 30 Amp: J636
Data Sheet
