HSJ225

$285.84
Out of stock
SKU
HSJ225

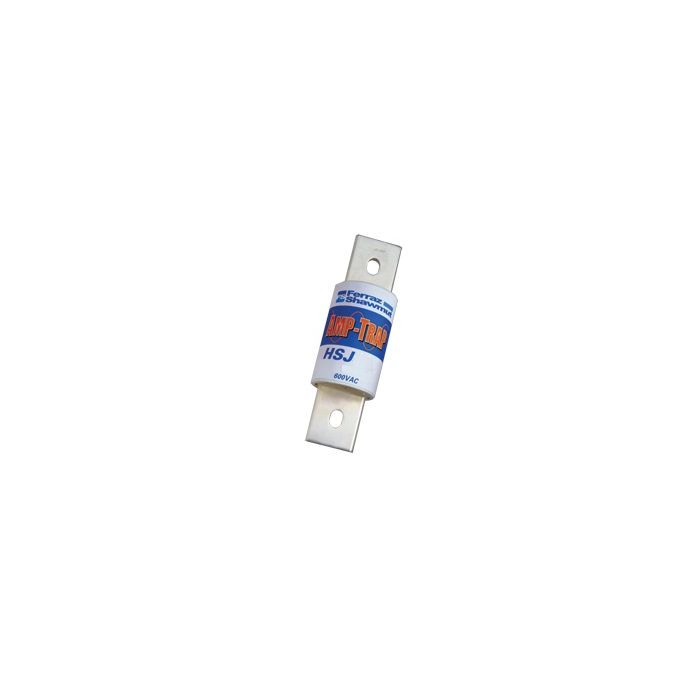

HSJ 225 Amp, 600V, Class J, Ferraz HSJ225, HSJ 225A | aka: Mersen HSJ225, Ferraz Shawmut HSJ225, UPC: 782001329662
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

HSJ 225 Amp, 600V, Class J, Ferraz HSJ225, HSJ 225A | aka: Mersen HSJ225, Ferraz Shawmut HSJ225, UPC: 782001329662


Description:

  • 225 Amps, 600 Volts AC
  • UL Class J Fuse
  • High Speed J
  • Designed for Solid State Motor Controllers
  • Current Limiting
  • Excellent Cycling Ability
  • Compact Size
  • Physical Size: 2 1/8" x 7 1/8"
  • Designed for Protection of Power Semiconductors
  • AC Voltage Rating: 600
  • DC Voltage Rating: 500
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • UL Listed to Standard 248-8 File E2137
  • DC Listed to UL Standard 248
  • CSA Certified to Standard C22.2 No. 248.8

  • Related Products:

  • Fuse Blocks
  • Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
  • 1 Pole: 64001J 3 Pole: 64003J
  • Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
  • 3 Pole: 64033J
  • Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
  • 3 Pole: 64063J

  • Fuse Reducers
  • 600 Amp to 400 Amp: J646
Data Sheet
