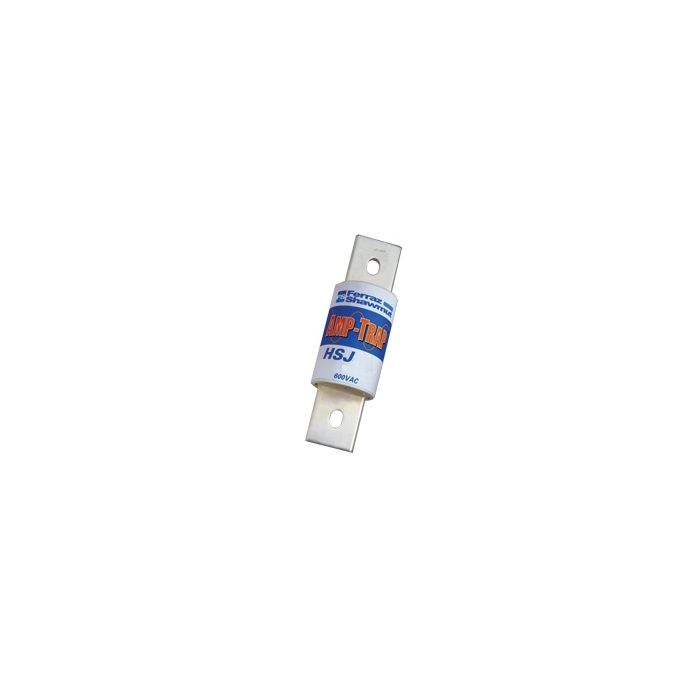

HSJ200
$143.64
Out of stock
SKU
HSJ200
HSJ 200 Amp, 600V, Class J, Ferraz HSJ200, HSJ 200A | aka: Mersen HSJ200, Ferraz Shawmut HSJ200, UPC: 782001329655
HSJ 200 Amp, 600V, Class J, Ferraz HSJ200, HSJ 200A | aka: Mersen HSJ200, Ferraz Shawmut HSJ200, UPC: 782001329655
Description:
- 200 Amps, 600 Volts AC
- UL Class J Fuse
- High Speed J
- Designed for Solid State Motor Controllers
- Current Limiting
- Excellent Cycling Ability
- Compact Size
- Physical Size: 1 5/8" x 5 3/4"
- Designed for Protection of Power Semiconductors
- AC Voltage Rating: 600
- DC Voltage Rating: 500
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- UL Listed to Standard 248-8 File E2137
- DC Listed to UL Standard 248
- CSA Certified to Standard C22.2 No. 248.8
- Related Products:
- Fuse Blocks
- Spring Reinforced, Box Side Clip (Al/Cu 350kcmil-#6)
- 1 Pole: 62001J 3 Pole: 62003J
- Spring Reinforced, Box Side Clip (Cu 350kcmil-#6)
- 3 Pole: 62053J
- Fuse Reducers
- 600 Amp to 200 Amp: J626
- 400 Amp to 200 Amp: J426
