FXD62B175

$948.69
Stock Quantity: 2
SKU
FXD62B175

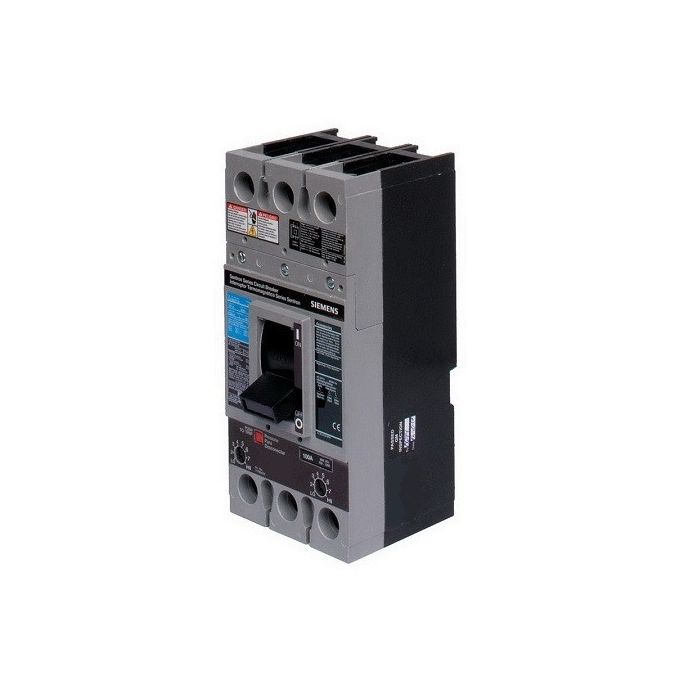

FXD 175 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B175, FXD 175A | aka: ITE FXD62B175, ITE Siemens FXD62B175, UPC: 783643211155
Allfuses.com is not an authorized distributor of Siemens products

FXD 175 Amp, 600V, Circuit Breaker Trip Unit, Siemens FXD62B175, FXD 175A | aka: ITE FXD62B175, ITE Siemens FXD62B175, UPC: 783643211155


Description:

  • Siemens FXD62B175, FXD 175 Amp, 600V, Circuit Breaker Trip Unit, FXD 175A | aka: ITE FXD62B175, ITE Siemens FXD62B175, UPC: 783643211155
  • Bolt On Mounting
  • Frame Type: FXD
  • Dimensions: 4.5 Inch Wide x 9.5 Inch High x 4 Inch Deep
  • Weight: 9lbs.
  • Wire Size: Lug Kit TA1FD350A (#6 AWG to 350 Kcmil)
  • FXD, 175A, 600V AC, 2 Pole
  • Interrupting Rating at 240 Volts AC: 65,000
  • Interrupting Rating at 480 Volts AC: 35,000
  • Interrupting Rating at 600 Volts AC: 22,000
  • Thermal Magnetic
