FLSR-070ID

$42.84
Stock Quantity: 679
SKU
FLSR-070ID

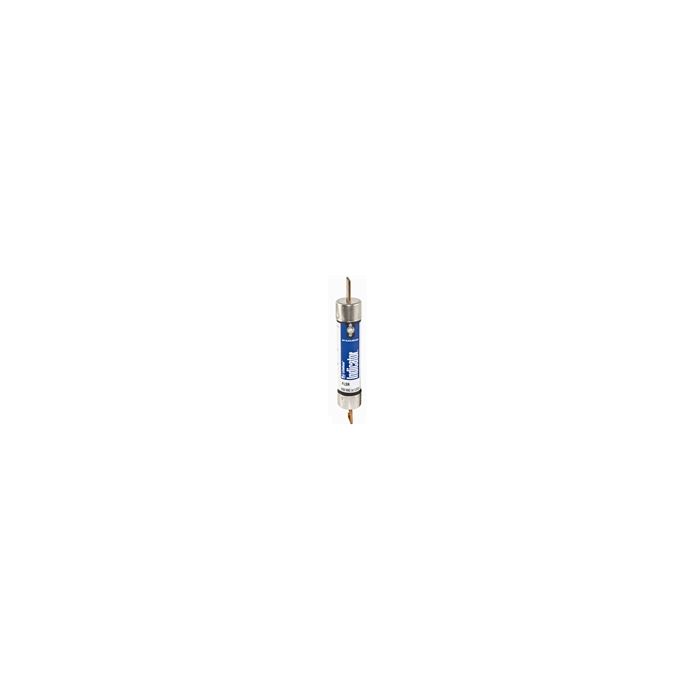

FLSR 70 Amp, 600V, Class RK5, Littelfuse FLSR-070ID, FLSR 70A | aka: Time Delay FLSR-070ID, Littel fuse FLSR-070ID, UPC: 079458025460
Allfuses.com is not an authorized distributor of Littelfuse products

FLSR 70 Amp, 600V, Class RK5, Littelfuse FLSR-070ID, FLSR 70A | aka: Time Delay FLSR-070ID, Littel fuse FLSR-070ID, UPC: 079458025460


Description:

  • 70 Amps, 600 Volts AC
  • UL Class RK5 w/ Indicator
  • Time Delay
  • Dual Element
  • Physical Size: 1 5/16" x 7 7/8"
  • Current Limiting
  • For All General Purpose Circuits
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu 2/0-#6)
  • 1 Pole: 61036R 3 Pole: 61038R
  • Box Lugs (Cu 2/0-#12)
  • 3 Pole: 61008R

  • Fuse Reducers
  • 200 Amp to 100 Amp: R212
  • 400 Amp to 100 Amp: R412
  • 600 Amp to 100 Amp: R612
Data Sheet
