FRN-R-5-6/10

$7.14
Stock Quantity: 1
SKU
FRN-R-5-6/10

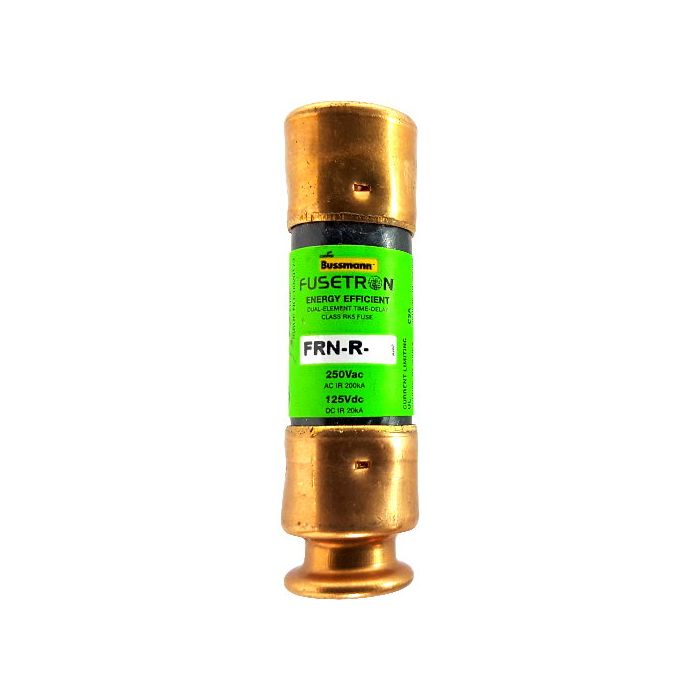

FRN-R 5 6/10 Amp, 250V, Class RK5, Bussmann FRN-R-5-6/10, FRN-R 5 6/10A | aka: Fusetron FRN-R-5-6/10, Cooper Bussmann FRN-R-5-6/10, UPC: 051712507233
Allfuses.com is not an authorized distributor of Bussmann products

FRN-R 5 6/10 Amp, 250V, Class RK5, Bussmann FRN-R-5-6/10, FRN-R 5 6/10A | aka: Fusetron FRN-R-5-6/10, Cooper Bussmann FRN-R-5-6/10, UPC: 051712507233


Description:

  • 5 6/10 Amps, 250 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • Physical Size: 0.56" x 2"
  • AC Voltage Rating: 250
  • Interrupting Rating: 200,000 AIC @ 250 VAC
  • DC Voltage Rating: 125
  • Interrupting Rating: 20,000 @ 125 VDC
  • UL Listed, Class RK-5, Guide JDDZ, File E4273
  • CSA Certified, C22.2 No. 248.12, Class 1422-01, File 53787

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • Adder: 20305R 1 Pole: 20306R 2 Pole: 20307R 3 Pole: 20308R
  • Screw Connector (Cu #10-14)
  • 1 Pole: 20316R 2 Pole: 20317R 3 Pole: 20318R
  • Pressure Plate (Cu #10-14)
  • 1 Pole: 20326R 2 Pole: 20327R 3 Pole: 20328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R632
  • 100 Amp to 30 Amp: R132
Data Sheet
