FLSR-045ID

$16.19
Stock Quantity: 302
SKU
FLSR-045ID

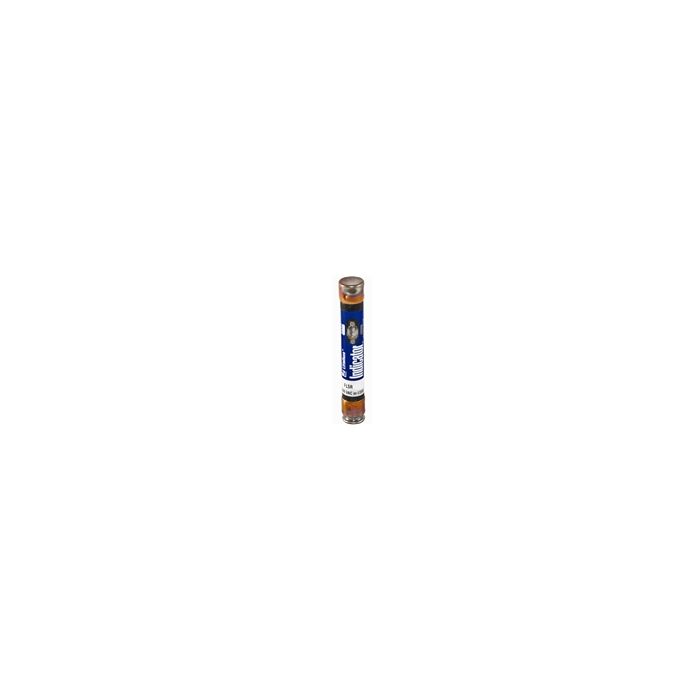

FLSR 45 Amp, 600V, Class RK5, Littelfuse FLSR-045ID, FLSR 45A | aka: Time Delay FLSR-045ID, Littel fuse FLSR-045ID, UPC: 079458025439
Allfuses.com is not an authorized distributor of Littelfuse products

FLSR 45 Amp, 600V, Class RK5, Littelfuse FLSR-045ID, FLSR 45A | aka: Time Delay FLSR-045ID, Littel fuse FLSR-045ID, UPC: 079458025439


Description:

  • 45 Amps, 600 Volts AC
  • UL Class RK5 w/ Indicator
  • Time Delay
  • Dual Element
  • Physical Size: 1 1/16" x 5 1/2"
  • Current Limiting
  • For All General Purpose Circuits
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60606R 2 Pole: 60607R 3 Pole: 60608R
  • Box Lugs (Cu #4-14)
  • 3 Pole: 60658R

  • Fuse Reducers
  • 100 Amp to 60 Amp: R166
  • 200 Amp to 60 Amp: R266
Data Sheet
