FLNR-080ID

$26.44
Stock Quantity: 515
SKU
FLNR-080ID

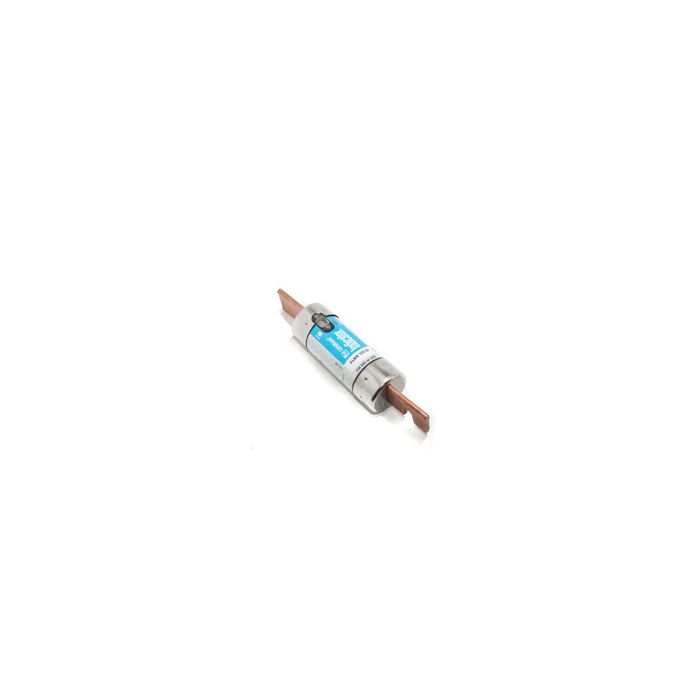

FLNR 80 Amp, 250V, Class RK5, Littelfuse FLNR-080ID, FLNR 80A | aka: Time Delay FLNR-080ID, Littel fuse FLNR-080ID, UPC: 079458023862
Allfuses.com is not an authorized distributor of Littelfuse products

FLNR 80 Amp, 250V, Class RK5, Littelfuse FLNR-080ID, FLNR 80A | aka: Time Delay FLNR-080ID, Littel fuse FLNR-080ID, UPC: 079458023862


Description:

  • 80 Amps, 250 Volts AC
  • UL Class RK5 w/ Indicator
  • Time Delay
  • Dual Element
  • Physical Size: 1 1/16" x 5 7/8"
  • Current Limiting
  • For All General Purpose Circuits
  • AC Voltage Rating: 250
  • DC Voltage Rating: 125
  • Interrupting Rating: 200,000 AIC @ 250VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu 2/0-#6)
  • 1 Pole: 21036R 2 Pole: 21037R 3 Pole: 21038R

  • Fuse Reducers
  • 200 Amp to 100 Amp: R212
  • 400 Amp to 100 Amp: R412
  • 600 Amp to 100 Amp: R612
Data Sheet
