FLNR-03.2

$7.14
Stock Quantity: 16
SKU
FLNR-03.2

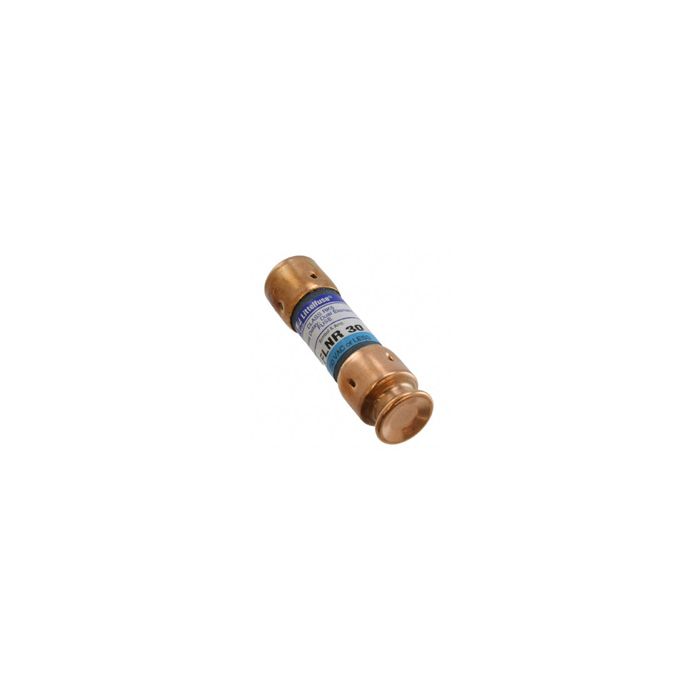

FLNR 3 2/10 Amp, 250V, Class RK5, Littelfuse FLNR-03.2, FLNR 3 2/10A | aka: Time Delay FLNR-03.2, Littel fuse FLNR-03.2, UPC: 079458150490
Allfuses.com is not an authorized distributor of Littelfuse products

FLNR 3 2/10 Amp, 250V, Class RK5, Littelfuse FLNR-03.2, FLNR 3 2/10A | aka: Time Delay FLNR-03.2, Littel fuse FLNR-03.2, UPC: 079458150490


Description:

  • 3 2/10 Amps, 250 Volts AC
  • UL Class RK5
  • Time Delay
  • Dual Element
  • Physical Size: 9/16" x 2"
  • Current Limiting
  • For All General Purpose Circuits
  • AC Voltage Rating: 250
  • DC Voltage Rating: 125
  • Interrupting Rating: 200,000 AIC @ 250VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • Adder: 20305R 1 Pole: 20306R 2 Pole: 20307R 3 Pole: 20308R
  • Screw Connector (Cu #10-14)
  • 1 Pole: 20316R 2 Pole: 20317R 3 Pole: 20318R
  • Pressure Plate (Cu #10-14)
  • 1 Pole: 20326R 2 Pole: 20327R 3 Pole: 20328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R632
  • 100 Amp to 30 Amp: R132
Data Sheet
