LPS-RK-3SP

$23.94
Stock Quantity: 44
SKU
LPS-RK-3SP

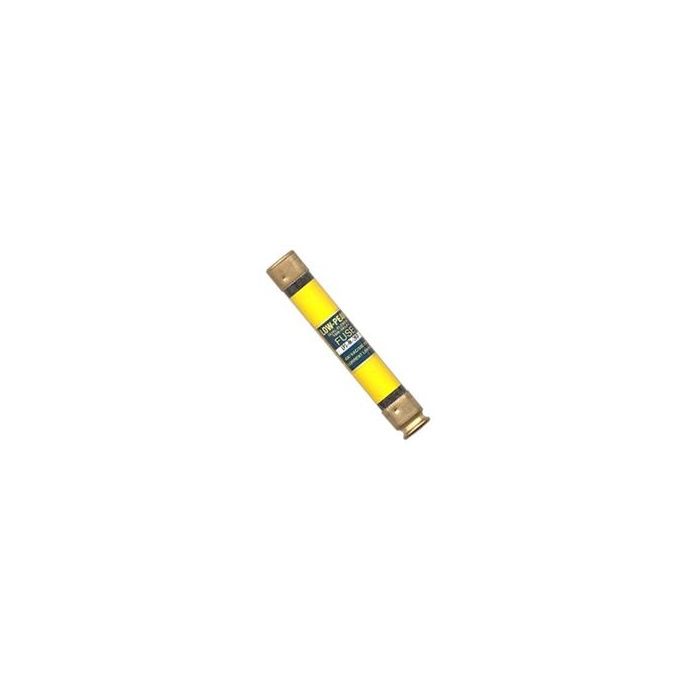

LPS-RK 3 Amp, 600V, Class RK1, Bussmann LPS-RK-3SP, LPS-RK 3A | aka: Cooper Bussmann LPS-RK-3SP, Eaton LPS-RK-3SP, UPC: 051712548182
Allfuses.com is not an authorized distributor of Bussmann products

LPS-RK 3 Amp, 600V, Class RK1, Bussmann LPS-RK-3SP, LPS-RK 3A | aka: Cooper Bussmann LPS-RK-3SP, Eaton LPS-RK-3SP, UPC: 051712548182


Description:

  • 3 Amps, 600 Volts AC
  • UL Class RK1
  • Low-Peak™ Fuse
  • Time Delay (Minimum 10 Seconds)
  • Dual Element
  • Physical Size: 0.81" x 5"
  • Current Limiting for Maximum Short Circuit Protection
  • High Inrush Current Motor Protection
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 300,000 AIC RMS @ 600VAC
  • DC Interrupting Rating: 100,000 AIC
  • UL Listed Special Purpose, Guide JFHR, File E56412
  • CSA Certified, Class 1422-02, File 53787

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
  • Screw Connector (Cu #10-14)
  • 3 Pole: 60318R
  • Pressure Plate (Cu #10-14)
  • 3 Pole: 60328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R636
  • 100 Amp to 30 Amp: R162
Data Sheet
