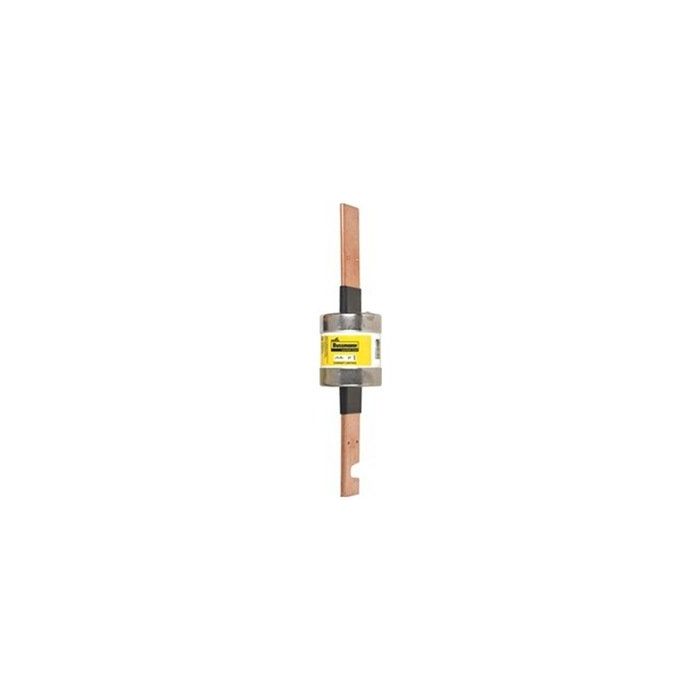

LPS-RK-250SP

Description:

• 250 Amps, 600 Volts AC
• UL Class RK1
• Low-Peak™ Fuse
• Time Delay (Minimum 10 Seconds)
• Dual Element
• Physical Size: 2.36" x 11.63"
• Current Limiting for Maximum Short Circuit Protection
• High Inrush Current Motor Protection
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787
•

• Related Products:


• Fuse Blocks
• Box Side Clip (Al/Cu 1000-250kcmil)
• 1 Pole: 64001R 3 Pole: 64003R
• Box Side Clip (Al/Cu 2 Hole - 350kcmil-#6)
• 3 Pole: 64033R


• Fuse Reducers
• 600 Amp to 400 Amp: R642
