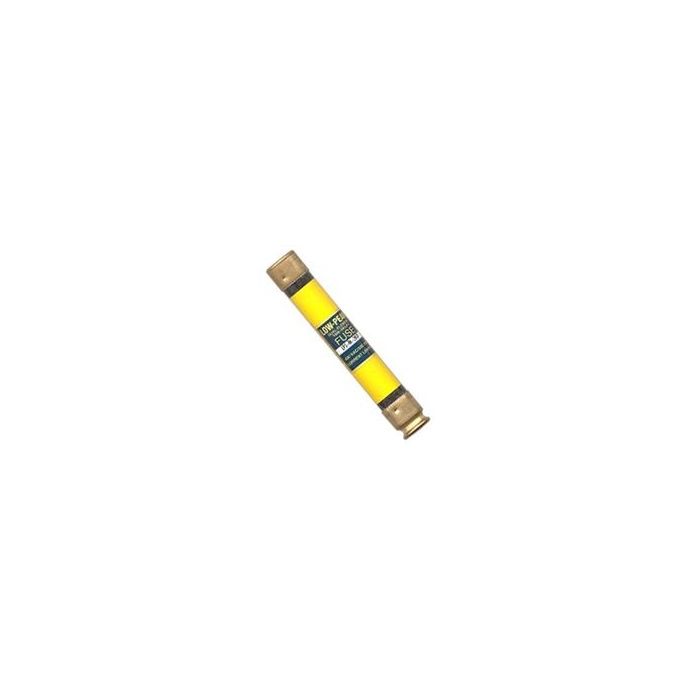

LPS-RK-10SP

Description:

• 10 Amps, 600 Volts AC
• UL Class RK1
• Low-Peak™ Fuse
• Time Delay (Minimum 10 Seconds)
• Dual Element
• Physical Size: 0.81" x 5"
• Current Limiting for Maximum Short Circuit Protection
• High Inrush Current Motor Protection
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787
•

• Related Products:


• Fuse Blocks
• Box Lugs (Al/Cu #2-14)
1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
• Screw Connector (Cu #10-14)
3 Pole: 60318R
• Pressure Plate (Cu #10-14)
3 Pole: 60328R


• Fuse Reducers
• 60 Amp to 30 Amp: R636
• 100 Amp to 30 Amp: R162
