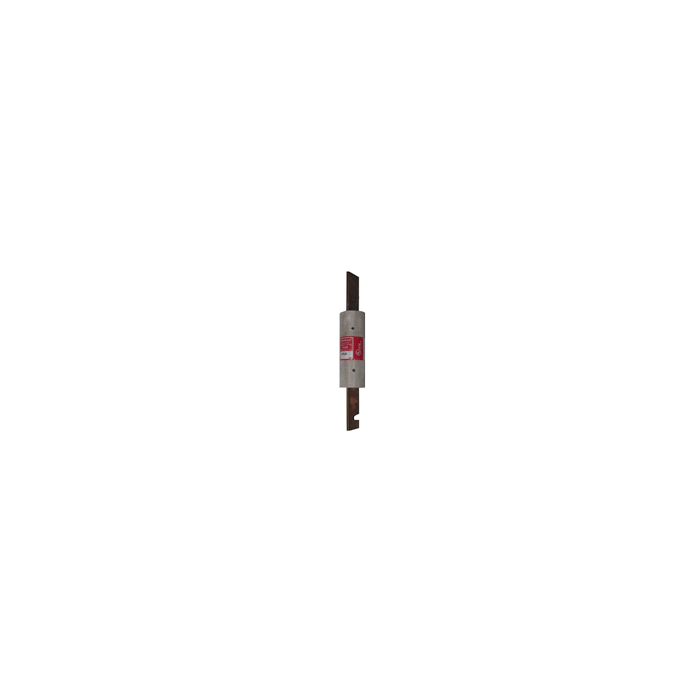

KTS-R-200
$201.49
Stock Quantity:
25
SKU
KTS-R-200
KTS-R 200 Amp, 600V, Class RK-1, Bussmann KTS-R-200, KTS-R 200A | aka: Limitron KTS-R-200, Cooper Bussmann KTS-R-200, UPC: 051712417204
KTS-R 200 Amp, 600V, Class RK-1, Bussmann KTS-R-200, KTS-R 200A | aka: Limitron KTS-R-200, Cooper Bussmann KTS-R-200, UPC: 051712417204
Description:
- 200 Amps, 600 Volts AC
- Fast Acting Fuse
- Single Element
- Current Limiting
- Physical Size: 1.5" x 9.63"
- LIMITRON® Fast Acting Fuse
- Suited for Circuits and Loads with No Heavy Surge Currents
- Tube Material: Glass Melamine
- End Caps: 70/30 Brass
- AC Voltage Rating: 600
- Interrupting Rating: 200,000 AIC RMS @ 600VAC
- UL Listed, Std. 248-12, Class RK1, Guide JDDZ, File E54273
- CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787
- Related Products:
- Fuse Blocks
- Box Side Clip (Al/Cu 350kcmil-#6)
- 1 Pole: 62001R 3 Pole: 62003R
- Box Side Clip (Cu 350kcmil-#6)
- 3 Pole: 62053R
- Fuse Reducers
- 400 Amp to 200 Amp: R422
- 600 Amp to 200 Amp: R622
