KTS-R-15

$32.14
Stock Quantity: 29
SKU
KTS-R-15

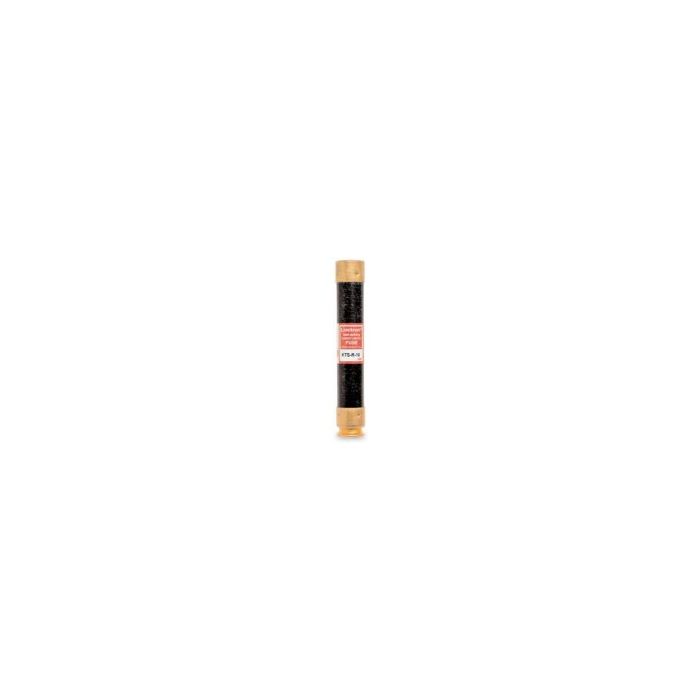

KTS-R 15 Amp, 600V, Class RK-1, Bussmann KTS-R-15, KTS-R 15A | aka: Limitron KTS-R-15, Cooper Bussmann KTS-R-15, UPC: 051712417044
Allfuses.com is not an authorized distributor of Bussmann products

KTS-R 15 Amp, 600V, Class RK-1, Bussmann KTS-R-15, KTS-R 15A | aka: Limitron KTS-R-15, Cooper Bussmann KTS-R-15, UPC: 051712417044


Description:

  • 15 Amps, 600 Volts AC
  • Fast Acting Fuse
  • Single Element
  • Current Limiting
  • Physical Size: 0.81" x 5"
  • LIMITRON® Fast Acting Fuse
  • Suited for Circuits and Loads with No Heavy Surge Currents
  • Tube Material: Glass Melamine
  • End Caps: 70/30 Brass
  • AC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC RMS @ 600VAC
  • UL Listed, Std. 248-12, Class RK1, Guide JDDZ, File E54273
  • CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
  • Screw Connector (Cu #10-14)
  • 3 Pole: 60318R
  • Pressure Plate (Cu #10-14)
  • 3 Pole: 60328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R636
  • 100 Amp to 30 Amp: R162
Data Sheet
