A4BY750

$527.19
Stock Quantity: 9
SKU
A4BY750

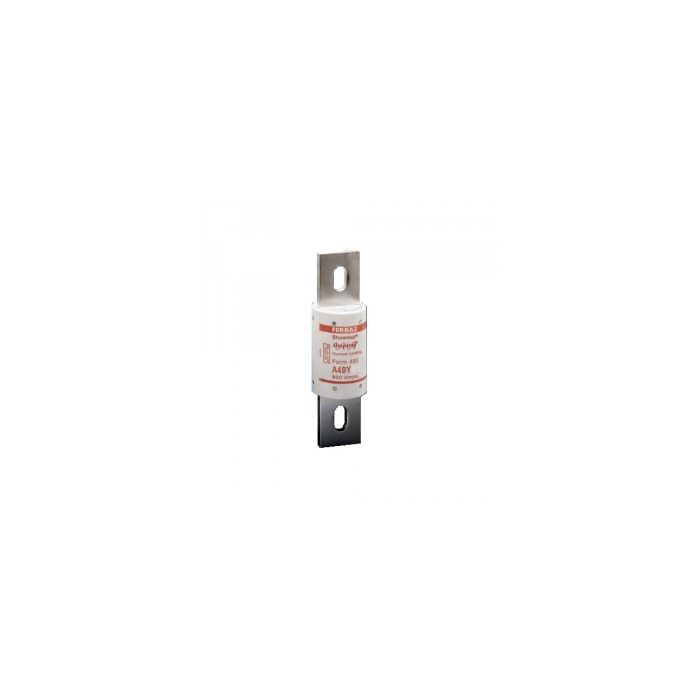

A4BY 750 Amp, 600V, Class L, Ferraz A4BY750, A4BY 750A | aka: Mersen A4BY750, Ferraz Shawmut A4BY750, UPC: 782001939106
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A4BY 750 Amp, 600V, Class L, Ferraz A4BY750, A4BY 750A | aka: Mersen A4BY750, Ferraz Shawmut A4BY750, UPC: 782001939106


Description:

  • 750 Amps, 600 Volts AC
  • UL Class L Fuse
  • 4 Second Time Delay
  • Current Limiting
  • Physical Size: 2 1/2" x 8 5/8"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Blade Stamped Catalog Numbers for Permanent Identification
  • Unique Dimensions Prevent Replacement by Other Fuse Classes
  • Glass Melamine Body and Plated Terminals for Harsh Environments
  • UL listed to standard 248-10 (601-6000A) File E2137
  • CSA certified to standard C22.2 No. 248.10 (601-6000A)
  • Self-certified for DC per UL248 (601-6000A)
Data Sheet
