A4BT1600

$628.24
Stock Quantity: 1
SKU
A4BT1600

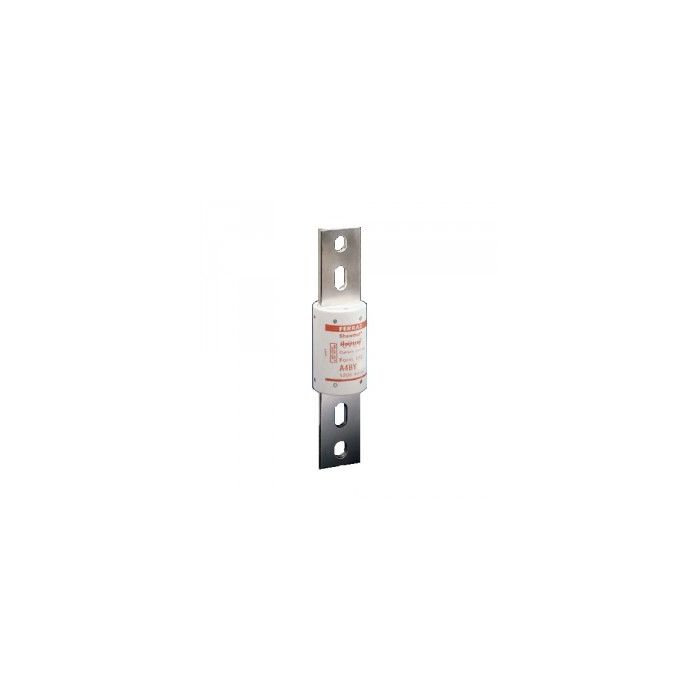

A4BT 1600 Amp, 600V, Class L, Ferraz A4BT1600, A4BT 1600A | aka: Mersen A4BT1600, Ferraz Shawmut A4BT1600, UPC: 782001939960
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A4BT 1600 Amp, 600V, Class L, Ferraz A4BT1600, A4BT 1600A | aka: Mersen A4BT1600, Ferraz Shawmut A4BT1600, UPC: 782001939960


Description:

  • 1600 Amps, 600 Volts AC
  • UL Class L Fuse
  • 10 Second Time Delay
  • Current Limiting
  • Physical Size: 3" x 10 3/4"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 500
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Blade Stamped Catalog Numbers for Permanent Identification
  • Unique Dimensions Prevent Replacement by Other Fuse Classes
  • Glass Melamine Body and Plated Terminals for Harsh Environments
  • UL Listed to standard 248-10 (601-2000A) File E2137
  • CSA Certified to standard C22.2 No. 248.10 (601-2000A)
  • Self-certified for DC per UL248 (601-2000)
Data Sheet
