A4BT1200

$298.49
In stock: 5
SKU
A4BT1200

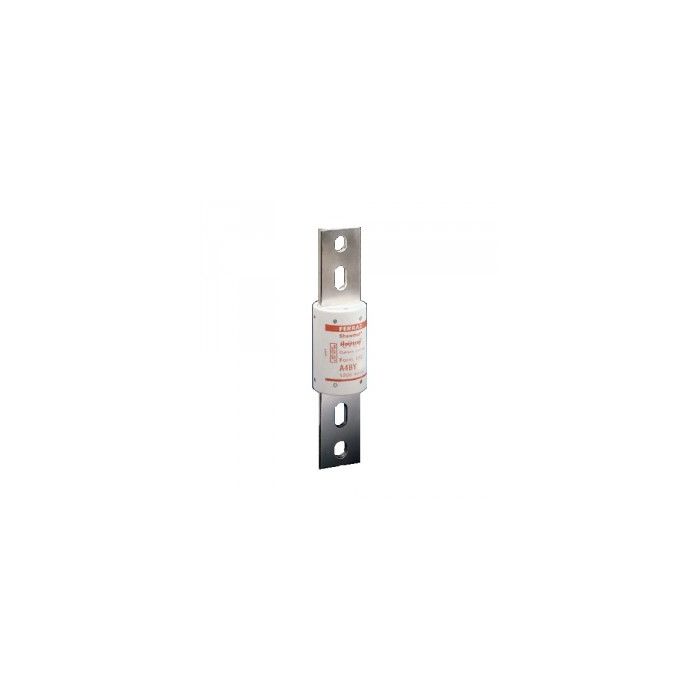

A4BT 1200 Amp, 600V, Class L, Ferraz A4BT1200, A4BT 1200A | aka: Mersen A4BT1200, Ferraz Shawmut A4BT1200, UPC: 782001939939

A4BT 1200 Amp, 600V, Class L, Ferraz A4BT1200, A4BT 1200A | aka: Mersen A4BT1200, Ferraz Shawmut A4BT1200, UPC: 782001939939


Description:

  • 1200 Amps, 600 Volts AC
  • UL Class L Fuse
  • 10 Second Time Delay
  • Current Limiting
  • Physical Size: 2 1/2" x 10 3/4"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 500
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Blade Stamped Catalog Numbers for Permanent Identification
  • Unique Dimensions Prevent Replacement by Other Fuse Classes
  • Glass Melamine Body and Plated Terminals for Harsh Environments
  • UL Listed to standard 248-10 (601-2000A) File E2137
  • CSA Certified to standard C22.2 No. 248.10 (601-2000A)
  • Self-certified for DC per UL248 (601-2000)
Download Data Sheet
