JTD-035ID

$28.44
Stock Quantity: 294
SKU
JTD-035ID

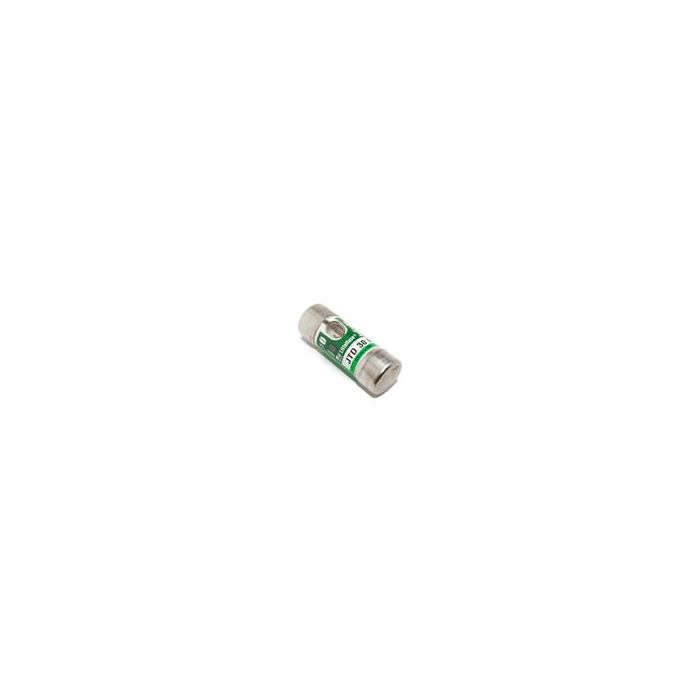

JTD 35 Amp, 600V, Class J, Littelfuse JTD-035ID, JTD 35A | aka: Time Delay JTD-035ID, Littel fuse JTD-035ID, UPC: 079458025903
Allfuses.com is not an authorized distributor of Littelfuse products

JTD 35 Amp, 600V, Class J, Littelfuse JTD-035ID, JTD 35A | aka: Time Delay JTD-035ID, Littel fuse JTD-035ID, UPC: 079458025903


Description:

  • 35 Amps, 600 Volts AC
  • UL Class J Fuse w/ Indicator
  • Time Delay
  • Dual Element
  • Physical Size: 1 1/16" x 2 3/8"
  • Current Limiting
  • IEC Type 2 Protection
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Ultrasafe Fuse Holders
  • 1 Pole: US6J1; 1 Pole with Indicator:US6J1I
  • 2 Pole: US6J2; 2 Pole with Indicator:US6J2I
  • 3 Pole: US6J3; 3 Pole with Indicator:US6J3I

  • Fuse Blocks
  • Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • 2 Pole: 60602J 3 Pole: 60603J
  • Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60305J 1 Pole: 60606J 2 Pole: 60607J 3 Pole: 60608J
  • Spring Reinforced, Box (Cu #4-14)
  • 3 Pole: 60658J

  • Fuse Reducers
  • 200 Amp to 60 Amp: J266
  • 100 Amp to 60 Amp: J166
Data Sheet
