JLS-070

$63.09
Stock Quantity: 201
SKU
JLS-070

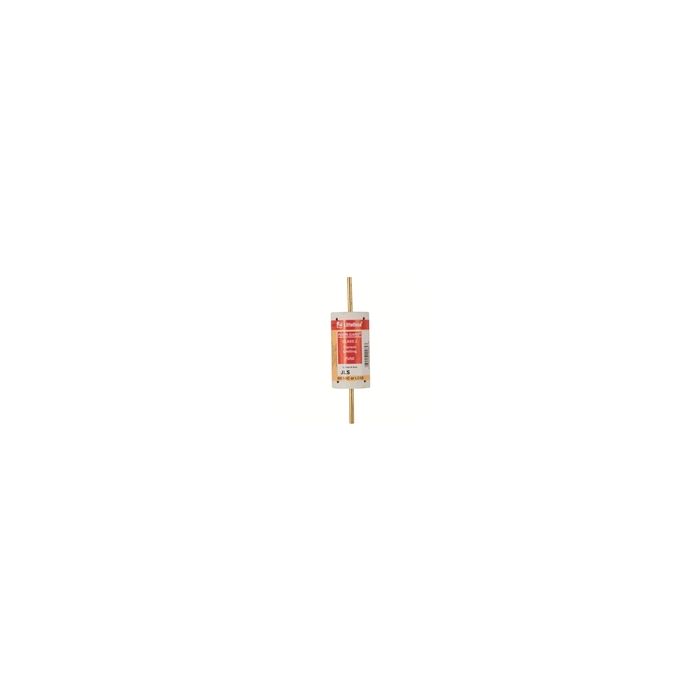

JLS 70 Amp, 600V, Class J, Littelfuse JLS-070, JLS 70A | aka: Fast Acting JLS-070, Littel fuse JLS-070, UPC: 079458200799
Allfuses.com is not an authorized distributor of Littelfuse products

JLS 70 Amp, 600V, Class J, Littelfuse JLS-070, JLS 70A | aka: Fast Acting JLS-070, Littel fuse JLS-070, UPC: 079458200799


Description:

  • 70 Amps, 600 Volts AC
  • UL Class J Fuse
  • Fast Acting
  • Current Limiting
  • Physical Size: 1 1/8" x 4 5/8"
  • General Purpose Circuits with Little or No Motor Load
  • Resistive Loads, Such as Resistance Electric Heat
  • Loads Requiring Fast Acting Overload Protection
  • AC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • UL Listed (File No. E81895)
  • CSA Certified (File No. LR29862)

  • Related Products:

  • Fuse Blocks
  • Spring Reinforced, Box Side Clip (Al/Cu 2/0-#6)
  • 3 Pole: 61008SJ
  • Spring Reinforced, Box Lugs (Al/Cu 2/0-#6)
  • 1 Pole: 61036J 2 Pole: 61037J 3 Pole: 61038J
  • Spring Reinforced, Box (Cu 2/0-#12)
  • 3 Pole: 61008J

  • Fuse Reducers
  • 600 Amp to 100 Amp: J616
  • 400 Amp to 100 Amp: J416
  • 200 Amp to 100 Amp: J216
Data Sheet
