JKS-8

$23.94
Stock Quantity: 3
SKU
JKS-8

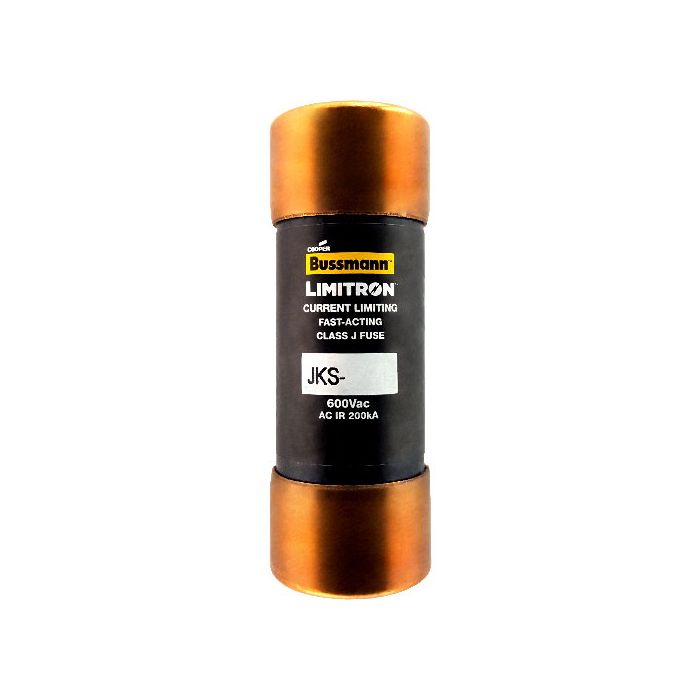

JKS 8 Amp, 600V, Class J, Bussmann JKS-8, JKS 8A | aka: Limitron JKS-8, Cooper Bussmann JKS-8, UPC: 051712174770
Allfuses.com is not an authorized distributor of Bussmann products

JKS 8 Amp, 600V, Class J, Bussmann JKS-8, JKS 8A | aka: Limitron JKS-8, Cooper Bussmann JKS-8, UPC: 051712174770


Description:

  • 8 Amps, 600 Volts AC
  • UL Class J Fuse
  • Quick Acting
  • Current Limiting
  • Physical Size: 0.81" x 2.25"
  • AC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC RMS @ 600VAC
  • UL Listed, Std. 248-8, Class J, Guide JDDZ, File E4273
  • CSA Certified, C22.2 No. 248.8, Class 1422-02, File 53787

  • Related Products:

  • Ultrasafe Fuse Holders
  • 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
  • 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
  • 3 Pole: US3J3; 3 Pole with Indicator:US3J3I

  • Fuse Blocks
  • Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60301J 3 Pole: 60303J
  • Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
  • Non-Spring Reinforced, Screw (Cu #4-14)
  • 3 Pole: 60313J
  • Non-Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60323J
  • Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60328SJ
  • Spring Reinforced, Box Lugs (Cu #4-14)
  • 3 Pole: 60358SJ

  • Fuse Reducers
  • 200 Amp to 30 Amp: J236
  • 100 Amp to 30 Amp: J136
  • 60 Amp to 30 Amp: J636
Data Sheet
