A4J90

$30.89
Stock Quantity: 101
SKU
A4J90

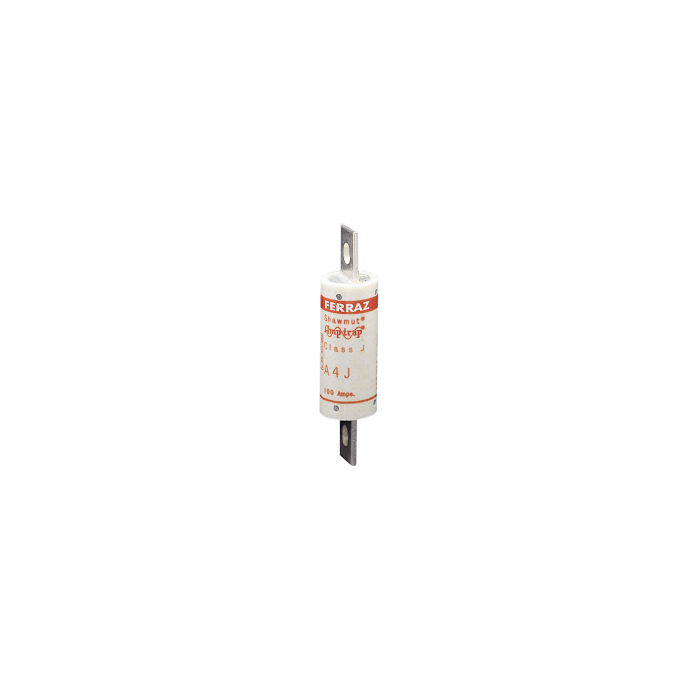

A4J 90 Amp, 600V, Class J, Ferraz A4J90, A4J 90A | aka: Mersen A4J90, Ferraz Shawmut A4J90, UPC: 782001960315

A4J 90 Amp, 600V, Class J, Ferraz A4J90, A4J 90A | aka: Mersen A4J90, Ferraz Shawmut A4J90, UPC: 782001960315


Description:

  • 90 Amps, 600 Volts AC
  • UL Class J Fuse
  • Fast Acting
  • Very Current Limiting
  • Physical Size: 1 1/8" x 4 1/2"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Easy to Read Imprint Label for Quick Recognition and Replacement
  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
  • IEC 269-2-1

  • Related Products:

  • Fuse Blocks
  • Spring Reinforced, Box Side Clip (Al/Cu 2/0-#6)
  • 3 Pole: 61008SJ
  • Spring Reinforced, Box Lugs (Al/Cu 2/0-#6)
  • 1 Pole: 61036J 2 Pole: 61037J 3 Pole: 61038J
  • Spring Reinforced, Box (Cu 2/0-#12)
  • 3 Pole: 61008J

  • Fuse Reducers
  • 600 Amp to 100 Amp: J616
  • 400 Amp to 100 Amp: J416
  • 200 Amp to 100 Amp: J216
Download Data Sheet
