A4J250

$118.04
Stock Quantity: 47
SKU
A4J250

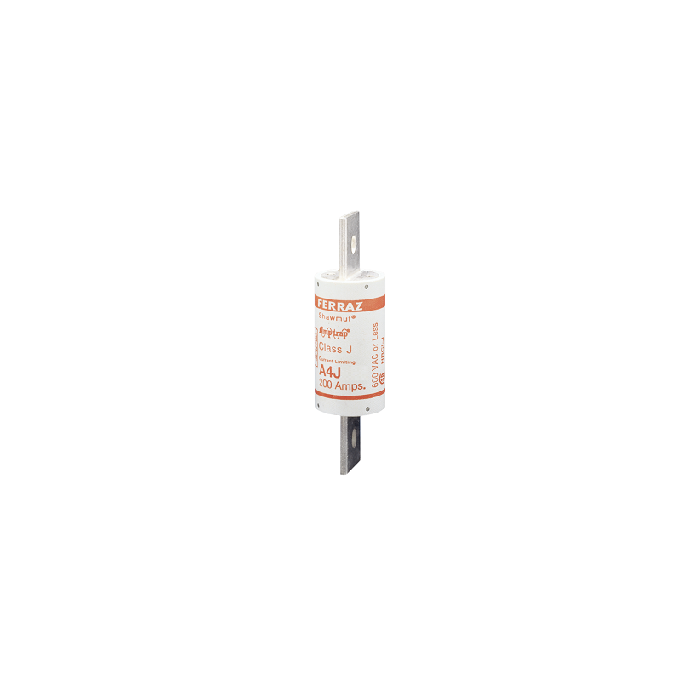

A4J 250 Amp, 600V, Class J, Ferraz A4J250, A4J 250A | aka: Mersen A4J250, Ferraz Shawmut A4J250, UPC: 782001960391

A4J 250 Amp, 600V, Class J, Ferraz A4J250, A4J 250A | aka: Mersen A4J250, Ferraz Shawmut A4J250, UPC: 782001960391


Description:

  • 250 Amps, 600 Volts AC
  • UL Class J Fuse
  • Fast Acting
  • Very Current Limiting
  • Physical Size: 2 1/8" x 7 1/8"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Easy to Read Imprint Label for Quick Recognition and Replacement
  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
  • IEC 269-2-1

  • Related Products:

  • Fuse Blocks
  • Spring Reinforced, Box Side Clip (Al/Cu 1000-250kcmil)
  • 1 Pole: 64001J 3 Pole: 64003J
  • Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 350kcmil-#4)
  • 3 Pole: 64033J
  • Spring Reinforced, Box Side Clip (2 Hole - Cu 350kcmil-#6)
  • 3 Pole: 64063J

  • Fuse Reducers
  • 600 Amp to 400 Amp: J646
Download Data Sheet
