A4J150

$53.59
Stock Quantity: 158
SKU
A4J150

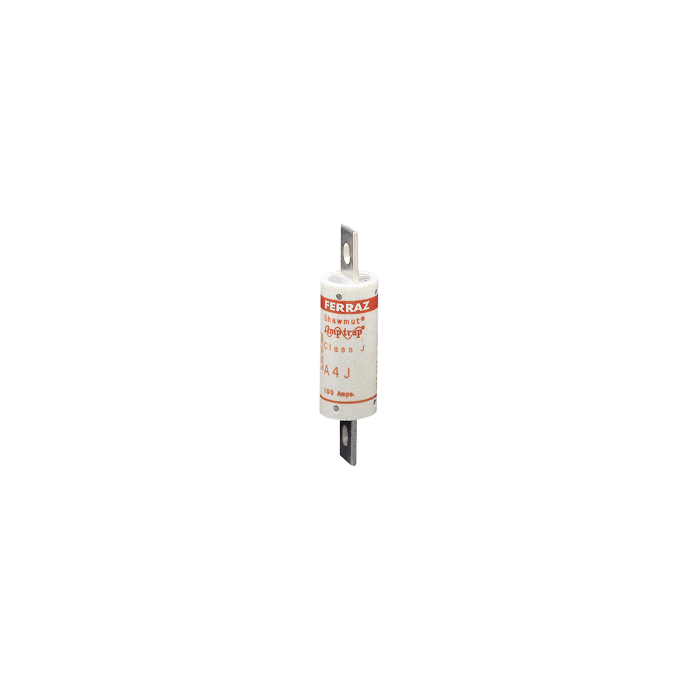

A4J 150 Amp, 600V, Class J, Ferraz A4J150, A4J 150A | aka: Mersen A4J150, Ferraz Shawmut A4J150, UPC: 782001960353
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A4J 150 Amp, 600V, Class J, Ferraz A4J150, A4J 150A | aka: Mersen A4J150, Ferraz Shawmut A4J150, UPC: 782001960353


Description:

  • 150 Amps, 600 Volts AC
  • UL Class J Fuse
  • Fast Acting
  • Very Current Limiting
  • Physical Size: 1 5/8" x 5 3/4"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Easy to Read Imprint Label for Quick Recognition and Replacement
  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
  • IEC 269-2-1

  • Related Products:

  • Fuse Blocks
  • Spring Reinforced, Box Side Clip (Al/Cu 350kcmil-#6)
  • 1 Pole: 62001J 3 Pole: 62003J
  • Spring Reinforced, Box Side Clip (Cu 350kcmil-#6)
  • 3 Pole: 62053J

  • Fuse Reducers
  • 600 Amp to 200 Amp: J626
  • 400 Amp to 200 Amp: J426
Data Sheet
