A4J10

$12.74
Stock Quantity: 173
SKU
A4J10

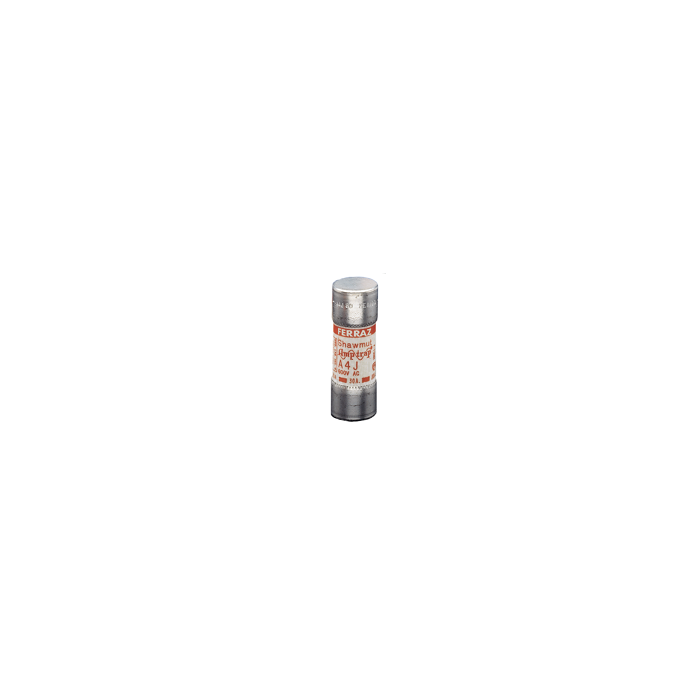

A4J 10 Amp, 600V, Class J, Ferraz A4J10, A4J 10A | aka: Mersen A4J10, Ferraz Shawmut A4J10, UPC: 782001960131

A4J 10 Amp, 600V, Class J, Ferraz A4J10, A4J 10A | aka: Mersen A4J10, Ferraz Shawmut A4J10, UPC: 782001960131


Description:

  • 10 Amps, 600 Volts AC
  • UL Class J Fuse
  • Fast Acting
  • Very Current Limiting
  • Physical Size: 13/16" x 2 1/4"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Easy to Read Imprint Label for Quick Recognition and Replacement
  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
  • IEC 269-2-1

  • Related Products:

  • Ultrasafe Fuse Holders
  • 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
  • 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
  • 3 Pole: US3J3; 3 Pole with Indicator:US3J3I

  • Fuse Blocks
  • Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60301J 3 Pole: 60303J
  • Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
  • Non-Spring Reinforced, Screw (Cu #4-14)
  • 3 Pole: 60313J
  • Non-Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60323J
  • Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60328SJ
  • Spring Reinforced, Box Lugs (Cu #4-14)
  • 3 Pole: 60358SJ

  • Fuse Reducers
  • 200 Amp to 30 Amp: J236
  • 100 Amp to 30 Amp: J136
  • 60 Amp to 30 Amp: J636
Download Data Sheet
