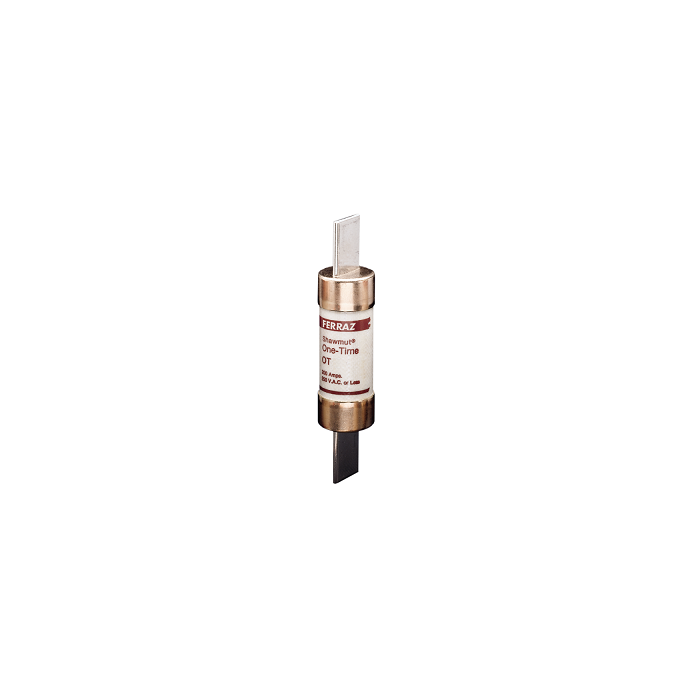

OT125

Description:

• 125 Amps, 250 Volts AC / DC
• UL Class K5 Fuse
• One Time
• Non Rejection Type
• Physical Size: 1 9/16" x 7 1/8"
• Low Cost Protection
• For Circuits Serving Non-Inductive Loads
• Residential and Small Commercial Installations
• AC Voltage Rating: 250
• DC Voltage Rating: 250
• Interrupting Rating: 50,000 AIC @ 250VAC
• DC Interrupting Rating: 20,000 AIC @ 250VDC
•

• Related Products:


• Fuse Blocks
• Box Side Clip (Al/Cu 350kcmil-#6)
1 Pole: 22001 3 Pole: 22003


• Fuse Reducers
• 400 Amp to 200 Amp: 422
• 600 Amp to 200 Amp: 622
