NON-5
$7.14
Stock Quantity:
46
SKU
NON-5

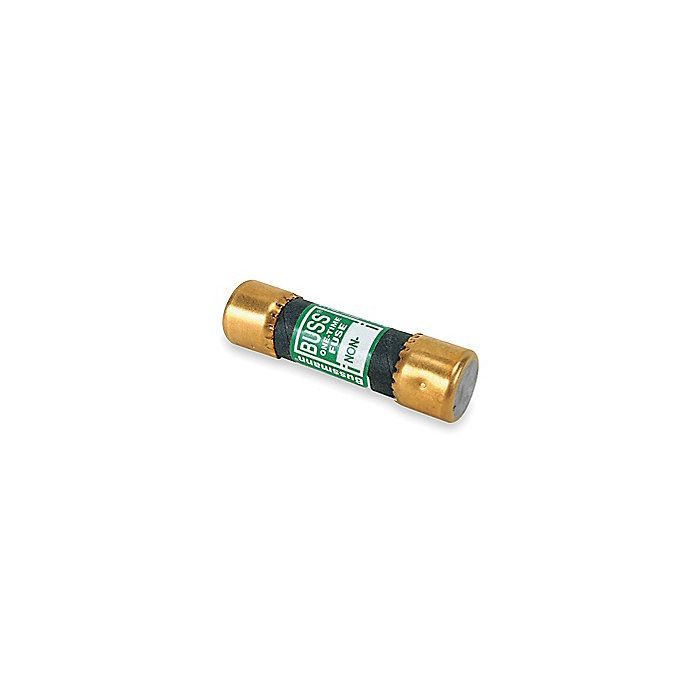

NON 5 Amp, 250V, Class K5, Bussmann NON-5, NON 5A | aka: Cooper Bussmann NON-5, Eaton NON-5, UPC: 051712300056
NON 5 Amp, 250V, Class K5, Bussmann NON-5, NON 5A | aka: Cooper Bussmann NON-5, Eaton NON-5, UPC: 051712300056
Description:
- 5 Amps, 250 Volts AC
- One Time Fuse
- General Purpose
- Ferraz OT Style are Much Less Expensive
- Physical Size: 0.56" x 2"
- AC Voltage Rating: 250
- DC Voltage Rating: 125
- Interrupting Rating: 50,000 AIC RMS @ 250VAC
- Interrupting Rating: 50,000 AIC @ 125 VDC
- Class K5 (0-60A), Std. 248-9 Class H (65-600A), Std. 248-6
- UL Guide JDDZ, File E4274
- CSA Certified, Class 1421-01, File 53787
- Related Products:
- Fuse Blocks
- Non-Spring Reinforced Box Lugs (Al/Cu #2-14)
- Adder: 20300 1 Pole: 20301 2 Pole: 20302 3 Pole: 20303
- Spring Reinforced Box Lugs (Al/Cu #2-14)
- Adder: 20305 1 Pole: 20306 2 Pole: 20307 3 Pole: 20308
- Non-Spring Reinforced Screw Connector (Cu #10-14)
- 1 Pole: 20311 2 Pole: 20312 3 Pole: 20313
- Spring Reinforced Screw Connector (Cu #10-14)
- Adder: 20315 1 Pole: 20316 2 Pole: 20317 3 Pole: 20318
- Non-Spring Reinforced Pressure Plate (Cu #10-14)
- 1 Pole: 20321 2 Pole: 20322 3 Pole: 20323
- Spring Reinforced Pressure Plate (Cu #10-14)
- 1 Pole: 20326 2 Pole: 20327 3 Pole: 20328
- Fuse Reducers
- 60 Amp to 30 Amp: 632
- 100 Amp to 30 Amp: 132
