CCMR-01.6

$12.09
Stock Quantity: 239
SKU
CCMR-01.6

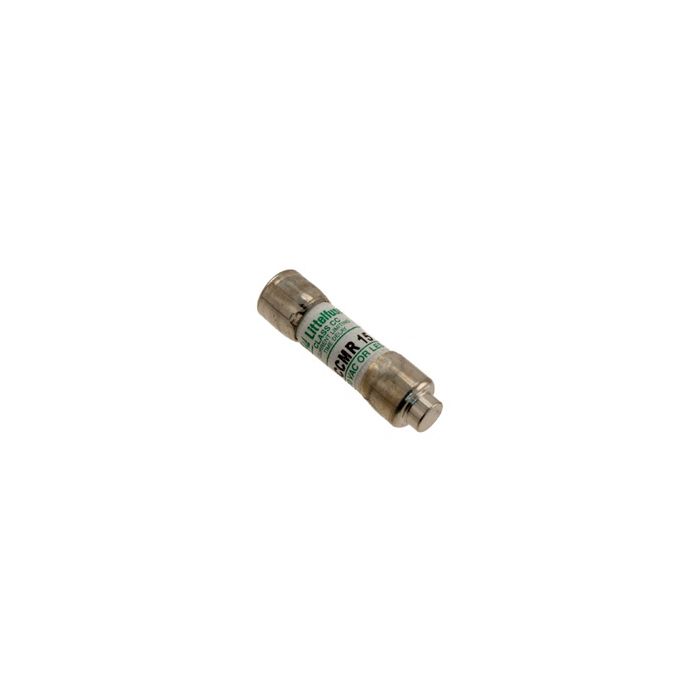

CCMR 1 6/10 Amp, 600V, Class CC, Littelfuse CCMR-01.6, CCMR 1 6/10A | aka: Time Delay CCMR-01.6, Littel fuse CCMR-01.6, UPC: 079458968156
Allfuses.com is not an authorized distributor of Littelfuse products

CCMR 1 6/10 Amp, 600V, Class CC, Littelfuse CCMR-01.6, CCMR 1 6/10A | aka: Time Delay CCMR-01.6, Littel fuse CCMR-01.6, UPC: 079458968156


Description:

  • 1 6/10 Amps, 600 Volts AC
  • UL Class CC Fuse
  • Time Delay
  • Dual Element
  • Physical Size: 0.41" x 1 1/2"
  • Extremely Current Limiting
  • Motor and Motor Branch Circuit Protection
  • AC Voltage Rating: 600
  • DC Voltage Rating: 250
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • RoHS Compliant

  • Related Products:

  • Ultrasafe Fuse Holders
  • 1 Pole: USCC1; 1 Pole with Indicator:USCC1I
  • 2 Pole: USCC2; 2 Pole with Indicator:USCC2I
  • 3 Pole: USCC3; 3 Pole with Indicator:USCC3I
  • 4 Pole: USCC4; 4 Pole with Indicator:USCC4I

  • Fuse Blocks
  • Screw with Double Quick Connects at Both Ends
  • Adder: 30310R 1 Pole: 30311R 2 Pole: 30312R 3 Pole: 30313R
  • Pressure Plate with Double Quick Connects at Both Ends
  • Adder: 30320R 1 Pole: 30321R 2 Pole: 30322R 3 Pole: 30323R
  • Copper Box Lugs
  • Adder: 30350R 1 Pole: 30351R 2 Pole: 30352R 3 Pole: 30353R
Data Sheet
