A70QS225-4

$131.19
Out of stock
SKU
A70QS225-4

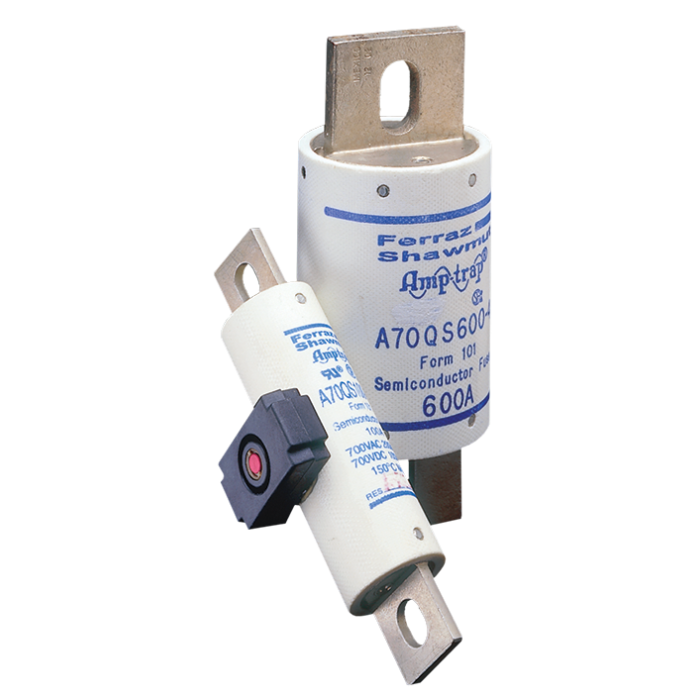

A70QS 225 Amp, 700V, Semiconductor, Ferraz A70QS225-4, A70QS 225A | aka: Mersen A70QS225-4, Ferraz Shawmut A70QS225-4, UPC: 782001948290
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A70QS 225 Amp, 700V, Semiconductor, Ferraz A70QS225-4, A70QS 225A | aka: Mersen A70QS225-4, Ferraz Shawmut A70QS225-4, UPC: 782001948290


Description:

  • 225 Amps, 700 Volts AC / DC
  • Semiconductor Fuse
  • Extremely Fast Acting
  • Current Limiting
  • Equivalent to Buss FWP Style
  • Physical Size: 1.5" x 5.09"
  • AC Voltage Rating: 700
  • DC Voltage Rating: 700
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Very Low I²t For Improved Protection of Equipment
  • Superior Cycling Ability, Low Watts Loss
  • UL Recognized Component, AC/DC UL file E60314
  • AC: Guide No. JFHR2
  • DC Tested to UL Standard 198L Parameters (35-800A)
  • CSA Certified File LR 12636

  • Fuse Block
  • Stud Mount (1 Pole): P266A

Data Sheet
