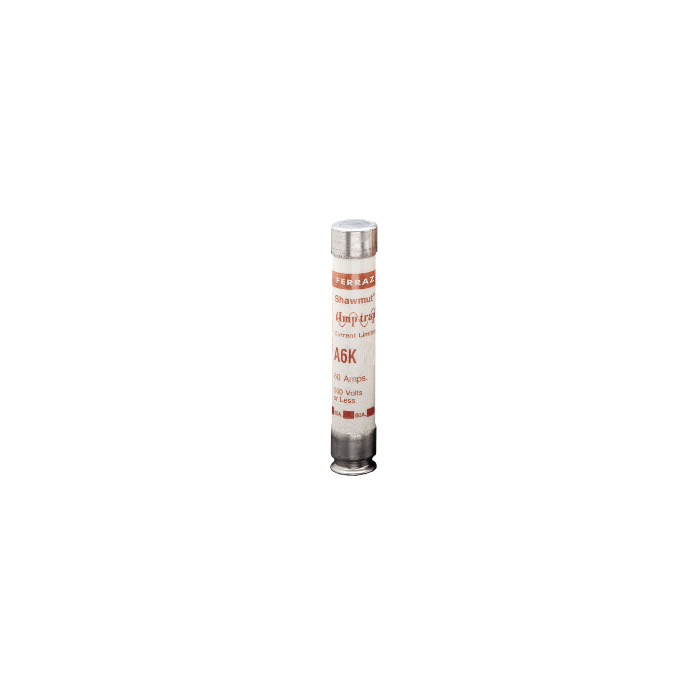

A6K30R

Description:

• 30 Amps, 600 Volts AC
• UL Class RK1 Fuse
• Fast Acting
• Interrupting Rating: 200kAIC
• Physical Size: 13/16" x 5"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 20,000 AIC
• Easy to Read Imprint Label for Quick Recognition and Replacement
• Rejection Style Design Prevents Replacement Errors
• UL Listed to Standard 248-12; UL File E2137
• Self-Certified for DC per UL Standard 248
• CSA Certified to Standard C22.2 No. 248.12
•

• Related Products:


• Fuse Blocks
• Box Lugs (Al/Cu #2-14)
1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
• Screw Connector (Cu #10-14)
3 Pole: 60318R
• Pressure Plate (Cu #10-14)
3 Pole: 60328R


• Fuse Reducers
• 60 Amp to 30 Amp: R636
• 100 Amp to 30 Amp: R162
