A4BY3500

$1,483.39
Stock Quantity: 1
SKU
A4BY3500

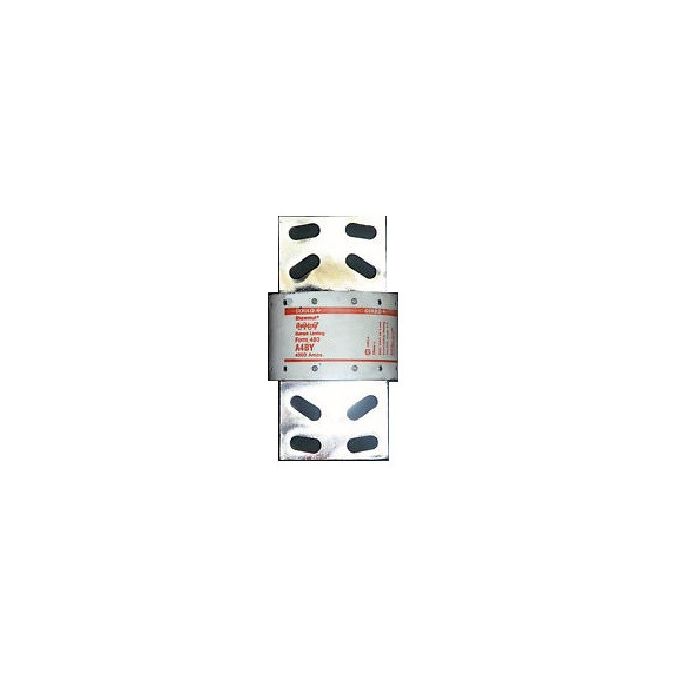

A4BY 3500 Amp, 600V, Class L, Ferraz A4BY3500, A4BY 3500A | aka: Mersen A4BY3500, Ferraz Shawmut A4BY3500, UPC: 782001939281
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A4BY 3500 Amp, 600V, Class L, Ferraz A4BY3500, A4BY 3500A | aka: Mersen A4BY3500, Ferraz Shawmut A4BY3500, UPC: 782001939281


Description:

  • 3500 Amps, 600 Volts AC
  • UL Class L Fuse
  • 4 Second Time Delay
  • Current Limiting
  • Physical Size: 5 3/4" x 10 3/4"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Blade Stamped Catalog Numbers for Permanent Identification
  • Unique Dimensions Prevent Replacement by Other Fuse Classes
  • Glass Melamine Body and Plated Terminals for Harsh Environments
  • UL listed to standard 248-10 (601-6000A) File E2137
  • CSA certified to standard C22.2 No. 248.10 (601-6000A)
  • Self-certified for DC per UL248 (601-6000A)
Data Sheet
