AJT600N

Description:

• li>

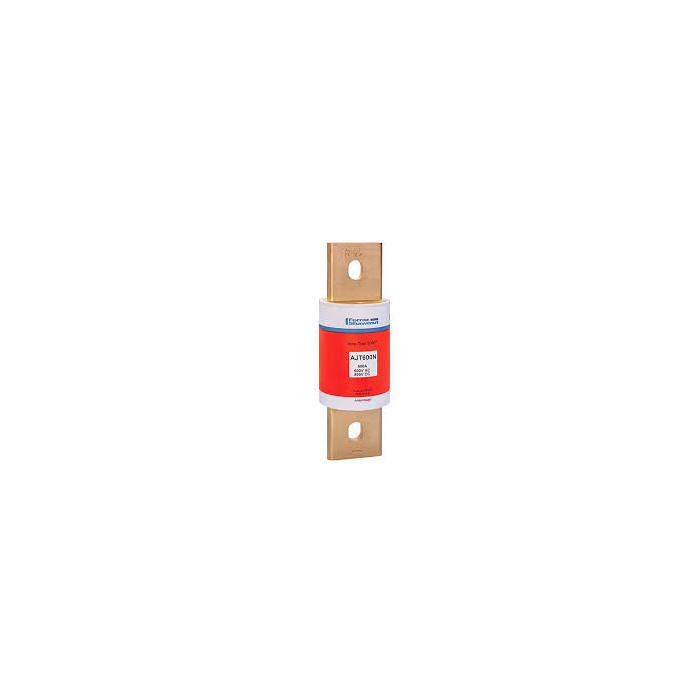

• Ferraz/Mersen AJT600N, AJTN 600 Amp, 600V, Class J, AJTN 600A, Time Delay | aka: Mersen AJT600N, Ferraz Shawmut AJT600n, UPC: 782001497958
• 600 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay for Motor Starting and Transformer Inrush
• Non Indicating
• Extremely Current Limiting
• Most Current Limiting UL Class Fuse
• Recommended for Arc Flash Energy Reduction
• Physical Size: 2 1/2" x 8"
• Metal Embossed Date and Catalog Number for Lasting Identification
• AC Voltage Rating: 600
• DC Voltage Rating: 500
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard 248-8 File E2137
• DC Listed to UL Standard 248
• CSA Certified to Standard C22.2 No. 248.8
• IEC 269-2-1
•

• Related Products:


• Fuse Blocks
• Spring Reinforced, Box Side Clip (2 Hole - Al/Cu 500kcmil-#4)
• 3 Pole: 6633J
