A2D175R

$36.72
In stock: 13
SKU
A2D175R

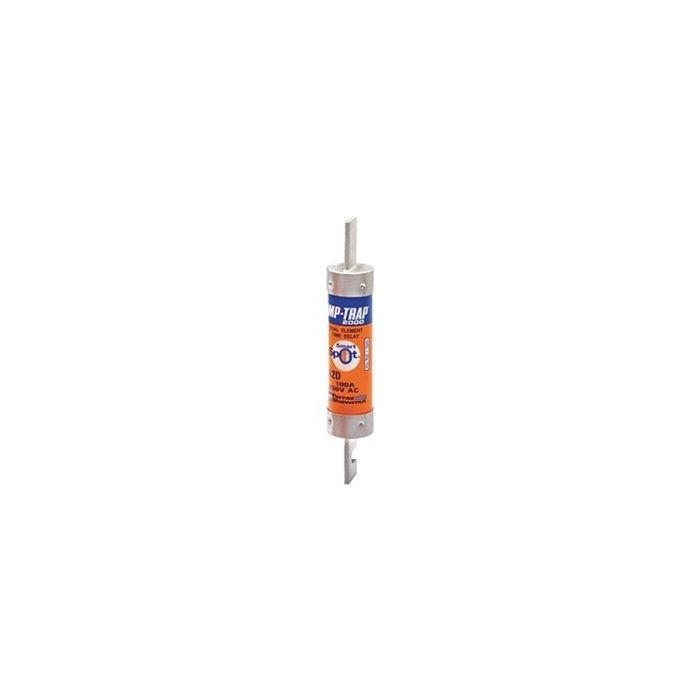

A2D 175 Amp, 250V, Class RK1, Ferraz A2D175R, A2D 175A | aka: Mersen A2D175R, Ferraz Shawmut A2D175R, UPC: 782001991074

A2D 175 Amp, 250V, Class RK1, Ferraz A2D175R, A2D 175A | aka: Mersen A2D175R, Ferraz Shawmut A2D175R, UPC: 782001991074


Description:

  • 175 Amps, 250 Volts AC
  • UL Class RK1 Fuse
  • Time Delay
  • Smart Spot
  • Physical Size: 1 9/16" x 7 1/8"
  • AC Voltage Rating: 250
  • DC Voltage Rating: 250
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Fiberglass Body
  • Arc Flash Mitigating; Plated Terminals
  • UL listed to standard 248-12 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.12

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 350kcmil-#6)
  • 1 Pole: 22001R 3 Pole: 22003R

  • Fuse Reducers
  • 400 Amp to 200 Amp: R422
  • 600 Amp to 200 Amp: R622
Download Data Sheet
