FRS-R-100

$39.04
Out of stock
SKU
FRS-R-100

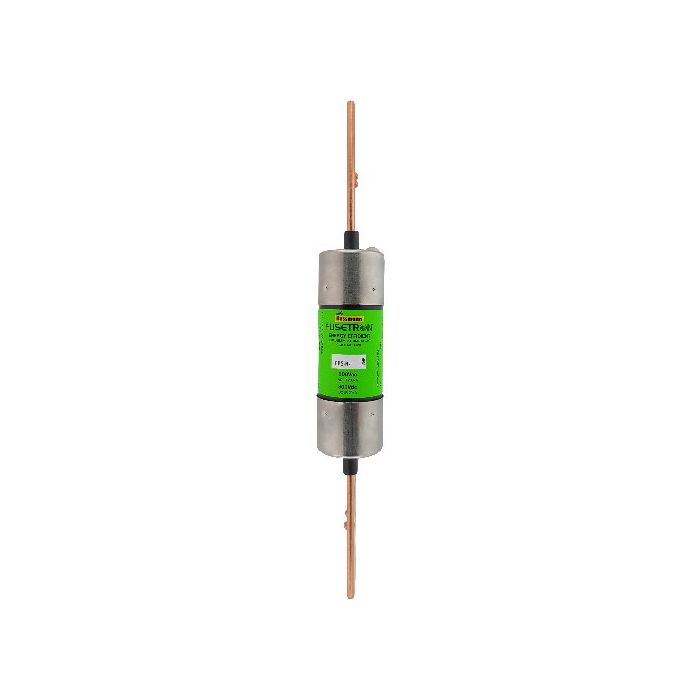

FRS-R 100 Amp, 600V, Class RK5, Bussmann FRS-R-100, FRS-R 100A | aka: Fusetron FRS-R-100, Cooper Bussmann FRS-R-100, UPC: 051712508438
Allfuses.com is not an authorized distributor of Bussmann products

FRS-R 100 Amp, 600V, Class RK5, Bussmann FRS-R-100, FRS-R 100A | aka: Fusetron FRS-R-100, Cooper Bussmann FRS-R-100, UPC: 051712508438


Description:

  • 100 Amps, 600 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • Physical Size: 1.11" x 7.88"
  • AC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC RMS
  • Interrupting Rating: 20 kAIC @ 300 Vdc
  • Current-limiting
  • UL Listed, Class RK5, Guide JDDZ, File E4273
  • CSA Certified, Class 1422-01, File 53787

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu 2/0-#6)
  • 1 Pole: 61036R 3 Pole: 61038R
  • Box Lugs (Cu 2/0-#12)
  • 3 Pole: 61008R

  • Fuse Reducers
  • 200 Amp to 100 Amp: R212
  • 400 Amp to 100 Amp: R412
  • 600 Amp to 100 Amp: R612
Data Sheet
