JLLN-025

$22.44
Stock Quantity: 12
SKU
JLLN-025

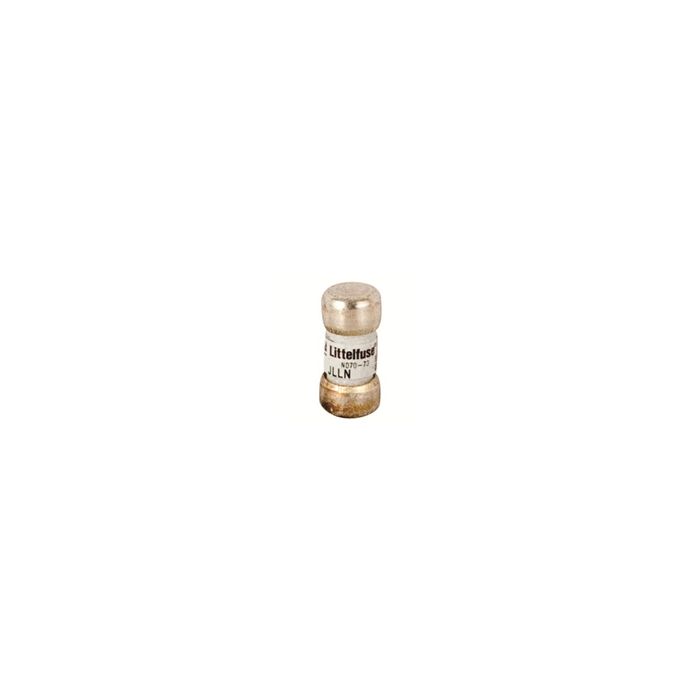

JLLN 25 Amp, 300V, Class T, Littelfuse JLLN-025, JLLN 25A | aka: Very Fast Acting JLLN-025, Littel fuse JLLN-025, UPC: 079458180725
Allfuses.com is not an authorized distributor of Littelfuse products

JLLN 25 Amp, 300V, Class T, Littelfuse JLLN-025, JLLN 25A | aka: Very Fast Acting JLLN-025, Littel fuse JLLN-025, UPC: 079458180725


Description:

  • 25 Amps, 300 Volts AC
  • UL Class T Fuse
  • Very Fast Acting
  • Current Limiting
  • Physical Size: 13/32" x 7/8"
  • Compact Design
  • Variable Speed Drive Protection
  • AC Voltage Rating: 300
  • DC Voltage Rating: 160
  • Interrupting Rating: 200,000 AIC @ 300VAC
  • DC Interrupting Rating: 20,000 AIC
  • RoHS Compliant
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 30306T 2 Pole: 30307T 3 Pole: 30308T
  • Pressure Plate (Cu #10-14)
  • 1 Pole: 30326T 2 Pole: 30327T 3 Pole: 30328T

Data Sheet
