A3T6

$10.39
Stock Quantity: 277
SKU
A3T6

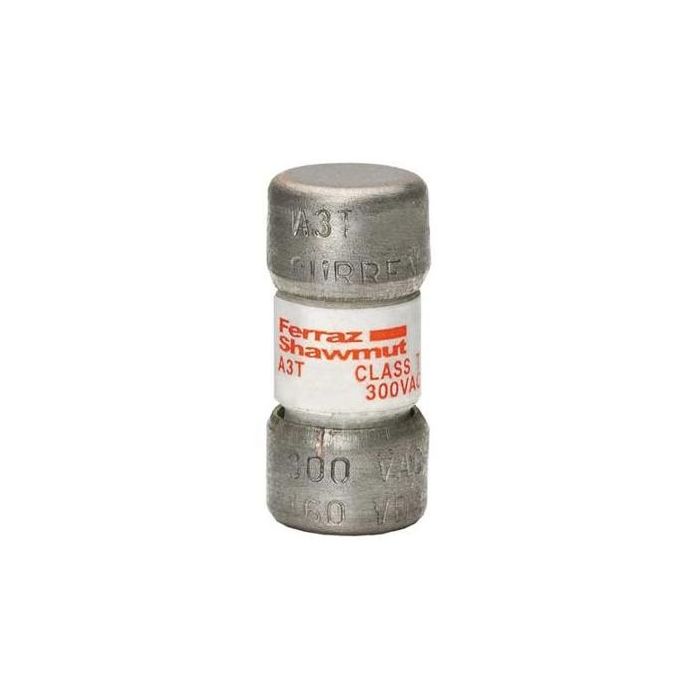

A3T 6 Amp, 300V, Class T, Ferraz A3T6, A3T 6A | aka: Mersen A3T6, Ferraz Shawmut A3T6, UPC: 782001890049
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A3T 6 Amp, 300V, Class T, Ferraz A3T6, A3T 6A | aka: Mersen A3T6, Ferraz Shawmut A3T6, UPC: 782001890049


Description:

  • 6 Amps, 300 Volts AC
  • UL Class T Fuse
  • Fast Acting
  • Extremely Current Limiting
  • Physical Size: 0.41" x 0.88"
  • AC Voltage Rating: 300
  • DC Voltage Rating: 160
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 50,000 AIC
  • Small Physical Design for Greater Design Flexibility
  • Blade Stamped Catalog Numbers for Permanent Identification
  • Unique Dimensions Prevent Replacement by Other Fuse Classes
  • UL listed to standard 248-15 File E2137
  • CSA certified to standard C22.2 no. 248.15
  • DC listed to UL standard 248

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 30306T 2 Pole: 30307T 3 Pole: 30308T
  • Pressure Plate (Cu #10-14)
  • 1 Pole: 30326T 2 Pole: 30327T 3 Pole: 30328T

Data Sheet
