TRS3-2/10R

$11.14
Stock Quantity: 27
SKU
TRS3-2/10R

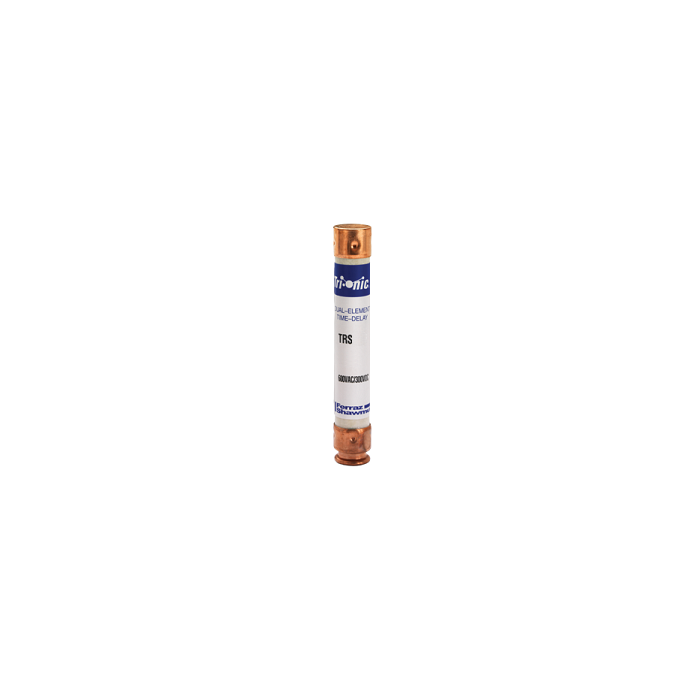

TRS 3 2/10 Amp, 600V, Class RK5, Ferraz TRS3-2/10R, TRS 3 2/10A | aka: Trionic TRS3-2/10R, Low Voltage TRS3-2/10R, UPC: 782001748692
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

TRS 3 2/10 Amp, 600V, Class RK5, Ferraz TRS3-2/10R, TRS 3 2/10A | aka: Trionic TRS3-2/10R, Low Voltage TRS3-2/10R, UPC: 782001748692


Description:

  • 3 2/10 Amps, 600 Volts AC
  • UL Class RK5
  • Dual Element
  • Time Delay
  • Physical Size: 13/16" x 5"
  • Current Limiting
  • AC and DC Rated
  • Rejection Style Design Prevents Replacement Errors
  • AC Voltage Rating: 600
  • DC Voltage Rating: 600
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
  • Screw Connector (Cu #10-14)
  • 3 Pole: 60318R
  • Pressure Plate (Cu #10-14)
  • 3 Pole: 60328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R636
  • 100 Amp to 30 Amp: R162
Data Sheet
