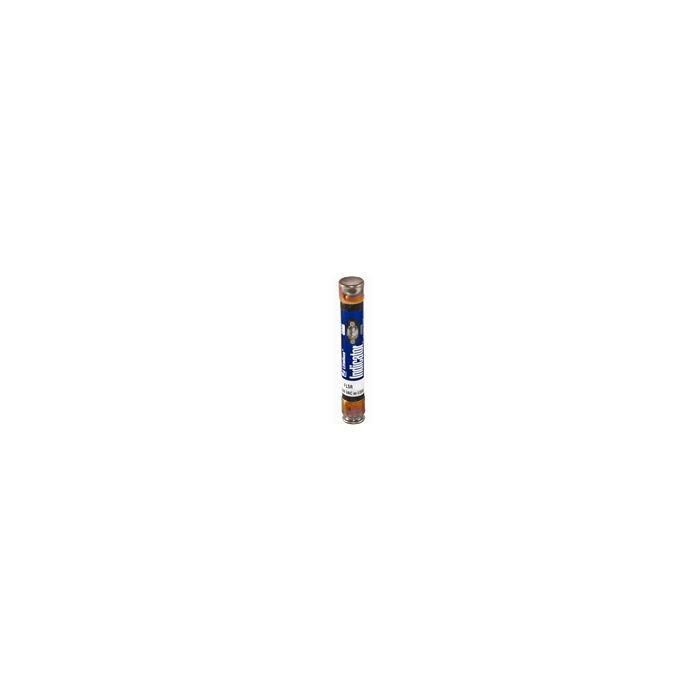

FLSR-009ID

$13.59
Stock Quantity: 55
SKU
FLSR-009ID
FLSR 9 Amp, 600V, Class RK5, Littelfuse FLSR-009ID, FLSR 9A | aka: Time Delay FLSR-009ID, Littel fuse FLSR-009ID, UPC: 079458025330
Allfuses.com is not an authorized distributor of Littelfuse products

FLSR 9 Amp, 600V, Class RK5, Littelfuse FLSR-009ID, FLSR 9A | aka: Time Delay FLSR-009ID, Littel fuse FLSR-009ID, UPC: 079458025330


Description:

  • 9 Amps, 600 Volts AC
  • UL Class RK5 w/ Indicator
  • Time Delay
  • Dual Element
  • Physical Size: 13/16" x 5"
  • Current Limiting
  • For All General Purpose Circuits
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 200,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
  • Screw Connector (Cu #10-14)
  • 3 Pole: 60318R
  • Pressure Plate (Cu #10-14)
  • 3 Pole: 60328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R636
  • 100 Amp to 30 Amp: R162
Data Sheet
