A6D7R

$19.74
Out of stock
SKU
A6D7R

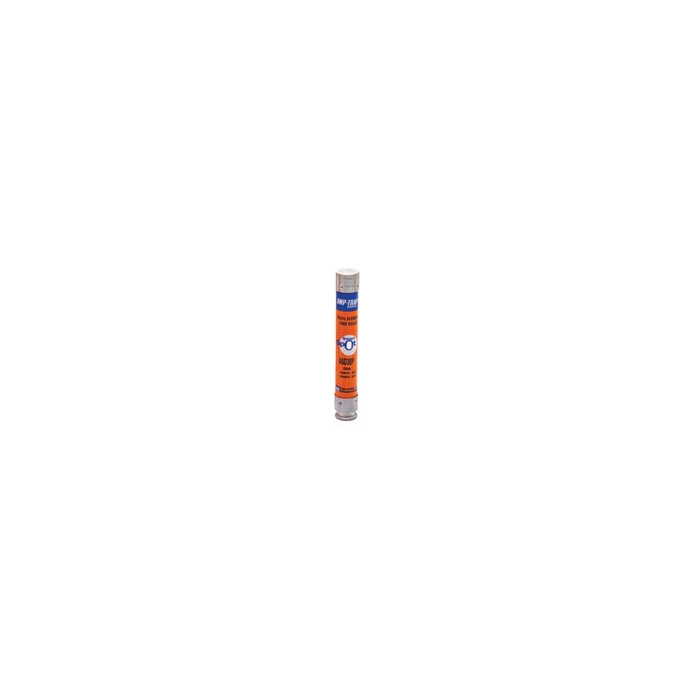

A6D 7 Amp, 600V, Class RK1, Ferraz A6D7R, A6D 7A | aka: Mersen A6D7R, Ferraz Shawmut A6D7R, UPC: 782001991777
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A6D 7 Amp, 600V, Class RK1, Ferraz A6D7R, A6D 7A | aka: Mersen A6D7R, Ferraz Shawmut A6D7R, UPC: 782001991777


Description:

  • 7 Amps, 600 Volts AC
  • UL Class RK1 Fuse
  • Time Delay
  • Smart Spot
  • Physical Size: 13/16" x 5"
  • AC Voltage Rating: 600
  • DC Voltage Rating: 600
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • Recommended for Arc Flash Energy Reduction
  • Rejection Style Design Prevents Replacement Errors
  • UL Listed to Standard 248-12; UL File E2137
  • DC Listed to UL Standard 248
  • CSA Certified to Standard C22.2 No. 248.12

  • Related Products:

  • Fuse Blocks
  • Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60306R 2 Pole: 60307R 3 Pole: 60308R
  • Screw Connector (Cu #10-14)
  • 3 Pole: 60318R
  • Pressure Plate (Cu #10-14)
  • 3 Pole: 60328R

  • Fuse Reducers
  • 60 Amp to 30 Amp: R636
  • 100 Amp to 30 Amp: R162
Data Sheet
