AJT5-6/10

$12.39
Stock Quantity: 37
SKU
AJT5-6/10N

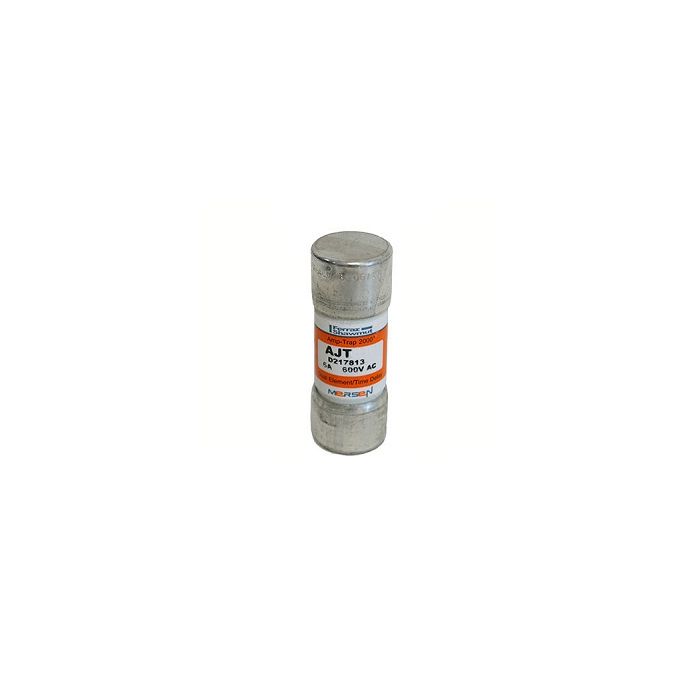

AJT 5 6/10 Amp, 600V, Class J, Ferraz AJT5-6/10, AJT 5 6/10A | aka: Mersen AJT5-6/10, Ferraz Shawmut AJT5-6/10, UPC: 782001962852
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

AJT 5 6/10 Amp, 600V, Class J, Ferraz AJT5-6/10, AJT 5 6/10A | aka: Mersen AJT5-6/10, Ferraz Shawmut AJT5-6/10, UPC: 782001962852


Description:

  • *Can also ship as newest equivalent version with -N part number suffix*
  • Ferraz/Mersen AJT5-6/10, AJT 5 6/10 Amp, 600V, Class J, AJT 5 6/10A, Time Delay | aka: Mersen AJT5-6/10, Ferraz Shawmut AJT5-6/10, UPC: 782001962852
  • 5 6/10 Amps, 600 Volts AC
  • UL Class J Fuse
  • Time Delay for Motor Starting and Transformer Inrush
  • Solid State SmartSpot Visual Blown Fuse Indicator
  • Extremely Current Limiting
  • Most Current Limiting UL Class Fuse
  • Recommended for Arc Flash Energy Reduction
  • Physical Size: 13/16" x 2 1/4"
  • Metal Embossed Date and Catalog Number for Lasting Identification
  • AC Voltage Rating: 600
  • DC Voltage Rating: 500
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 100,000 AIC
  • UL Listed to Standard 248-8 File E2137
  • DC Listed to UL Standard 248
  • CSA Certified to Standard C22.2 No. 248.8
  • IEC 269-2-1

  • Related Products:

  • Ultrasafe Fuse Holders
  • 1 Pole: US3J1; 1 Pole with Indicator:US3J1I
  • 2 Pole: US3J2; 2 Pole with Indicator:US3J2I
  • 3 Pole: US3J3; 3 Pole with Indicator:US3J3I

  • Fuse Blocks
  • Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • 1 Pole: 60301J 3 Pole: 60303J
  • Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60305SJ 1 Pole: 60306SJ 2 Pole: 60307SJ 3 Pole: 60308SJ
  • Non-Spring Reinforced, Screw (Cu #4-14)
  • 3 Pole: 60313J
  • Non-Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60323J
  • Spring Reinforced, Pressure Plate (Cu #4-14)
  • 3 Pole: 60328SJ
  • Spring Reinforced, Box Lugs (Cu #4-14)
  • 3 Pole: 60358SJ

  • Fuse Reducers
  • 200 Amp to 30 Amp: J236
  • 100 Amp to 30 Amp: J136
  • 60 Amp to 30 Amp: J636
Data Sheet
