OTS1

$8.74
Stock Quantity: 54
SKU
OTS1

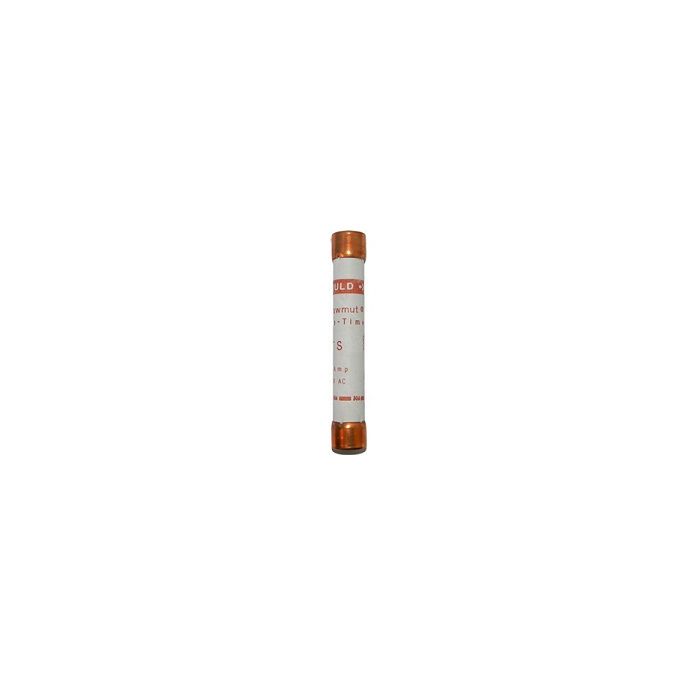

OTS 1 Amp, 600V, Class K5, Ferraz OTS1, OTS 1A | aka: Mersen OTS1, Ferraz Shawmut OTS1, UPC: 782001700607
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

OTS 1 Amp, 600V, Class K5, Ferraz OTS1, OTS 1A | aka: Mersen OTS1, Ferraz Shawmut OTS1, UPC: 782001700607


Description:

  • 1 Amp, 600 Volts AC
  • UL Class K5 Fuse
  • One Time
  • Non Rejection Type
  • Physical Size: 13/16" x 5"
  • Low Cost Protection
  • For Circuits Serving Non-Inductive Loads
  • Residential and Small Commercial Installations
  • AC Voltage Rating: 600
  • DC Voltage Rating: 300
  • Interrupting Rating: 50,000 AIC @ 600VAC
  • DC Interrupting Rating: 20,000 AIC @ 300VDC

  • Related Products:

  • Fuse Blocks
  • Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60300 1 Pole: 60301 2 Pole: 60302 3 Pole: 60303
  • Spring Reinforced, Box Lugs (Al/Cu #2-14)
  • Adder: 60305 1 Pole: 60306 2 Pole: 60307 3 Pole: 60308
  • Non-Spring Reinforced, Screw Connector (Cu #10-14)
  • 1 Pole: 60311 3 Pole: 60313
  • Spring Reinforced, Screw Connector (Cu #10-14)
  • 3 Pole: 60318
  • Spring Reinforced, Pressure Plate (Cu #10-14)
  • 3 Pole: 60328

  • FuseReducers
  • 60 Amp to 30 Amp: 636
  • 100 Amp to 30 Amp: 162

Data Sheet
