SLC-020

$7.49
Stock Quantity: 101
SKU
SLC-020

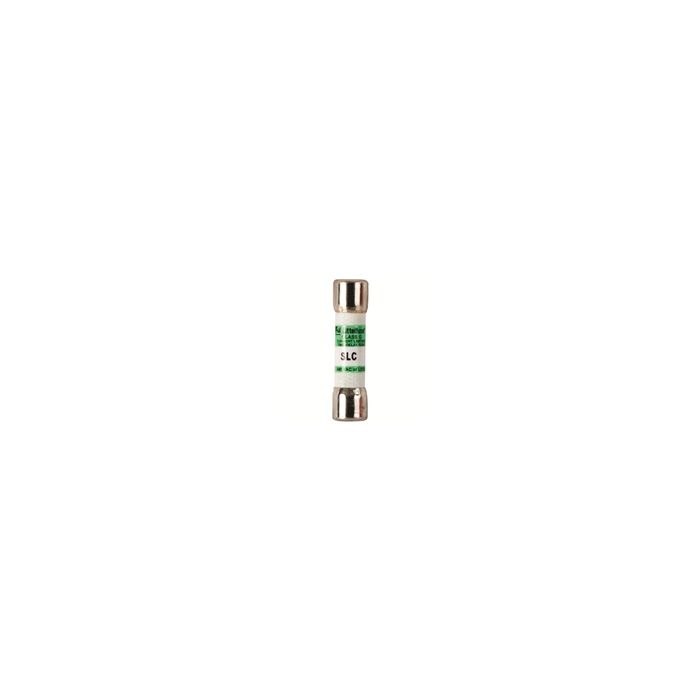

SLC 20 Amp, 600V, Class G, Littelfuse SLC-020, SLC 20A | aka: Time Delay SLC-020, Littel fuse SLC-020, UPC: 079458420715
Allfuses.com is not an authorized distributor of Littelfuse products

SLC 20 Amp, 600V, Class G, Littelfuse SLC-020, SLC 20A | aka: Time Delay SLC-020, Littel fuse SLC-020, UPC: 079458420715


Description:

  • 20 Amps, 600 Volts AC
  • UL Class G Fuse
  • Time Delay
  • Current Limiting
  • Physical Size: 13/32" x 1 13/32"
  • Cost Effective Branch Circuit Protection
  • Branch Circuit Rated
  • Fuse Length Varies to Prevent Over-Fusing
  • AC Voltage Rating: 600
  • DC Voltage Rating: 170
  • Interrupting Rating: 100,000 AIC @ 600VAC
  • DC Interrupting Rating: 10,000 AIC @ 170VDC
  • UL Listed (File: E81895) CSA Certified (File: LR29862)
Data Sheet
